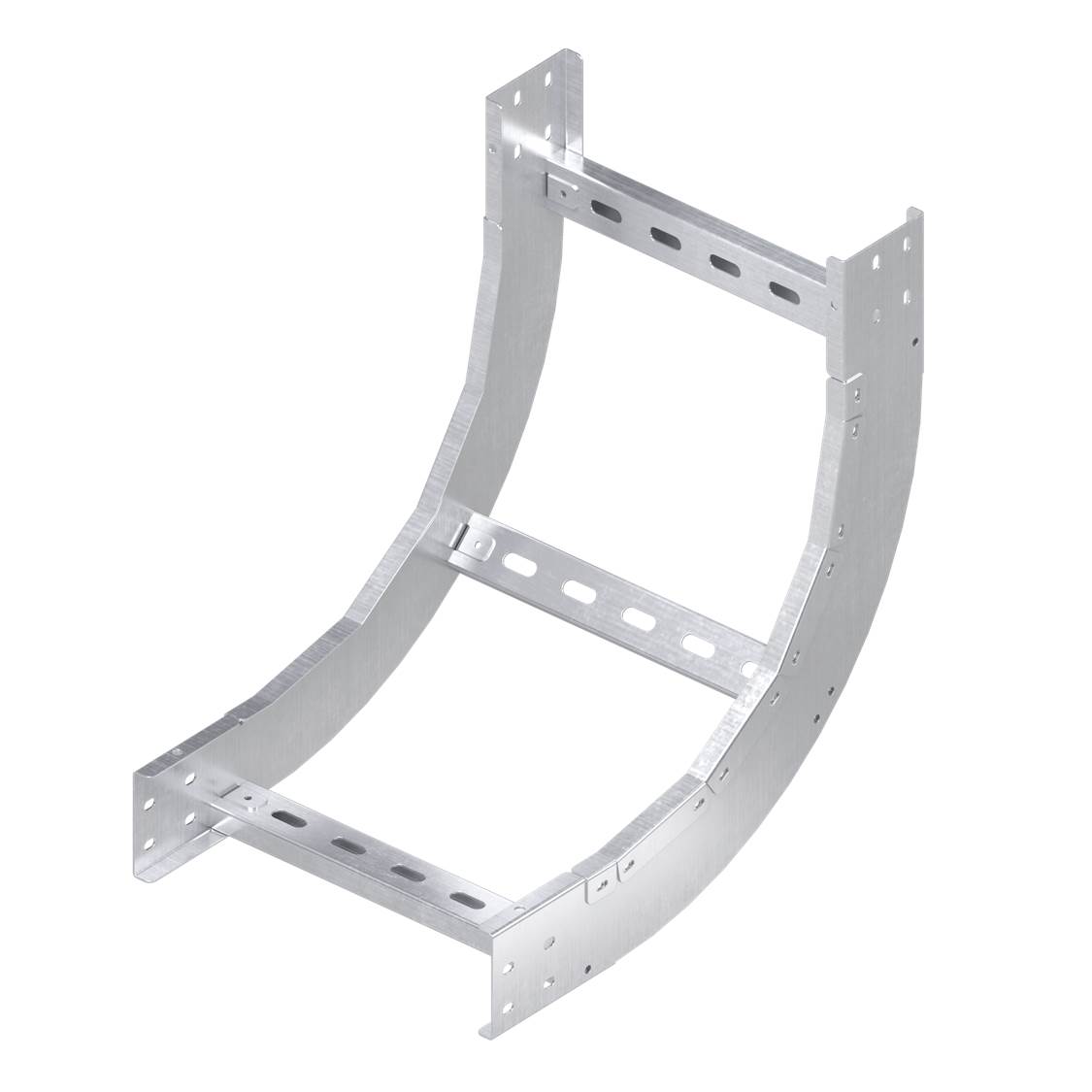

Internal vertical angle 90° 100x300, R600, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LH1630KHDZ

Internal vertical angle 90° 100x300, R600, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LH1630KHDZ
Colour Light grey
Deflection (angle) 90°
Cable tray width, mm 300
Cable tray height, mm 100
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
With cover Yes
Surface protection Hot-dip galvanized
Material quality Steel
Material Steel
Change of direction Vertically rising
Model Included connector
Type of accessories 90º vertical inner bend
Product type System accessories
Height 100 mm
Width 300 mm
Material Hot-dip galvanized

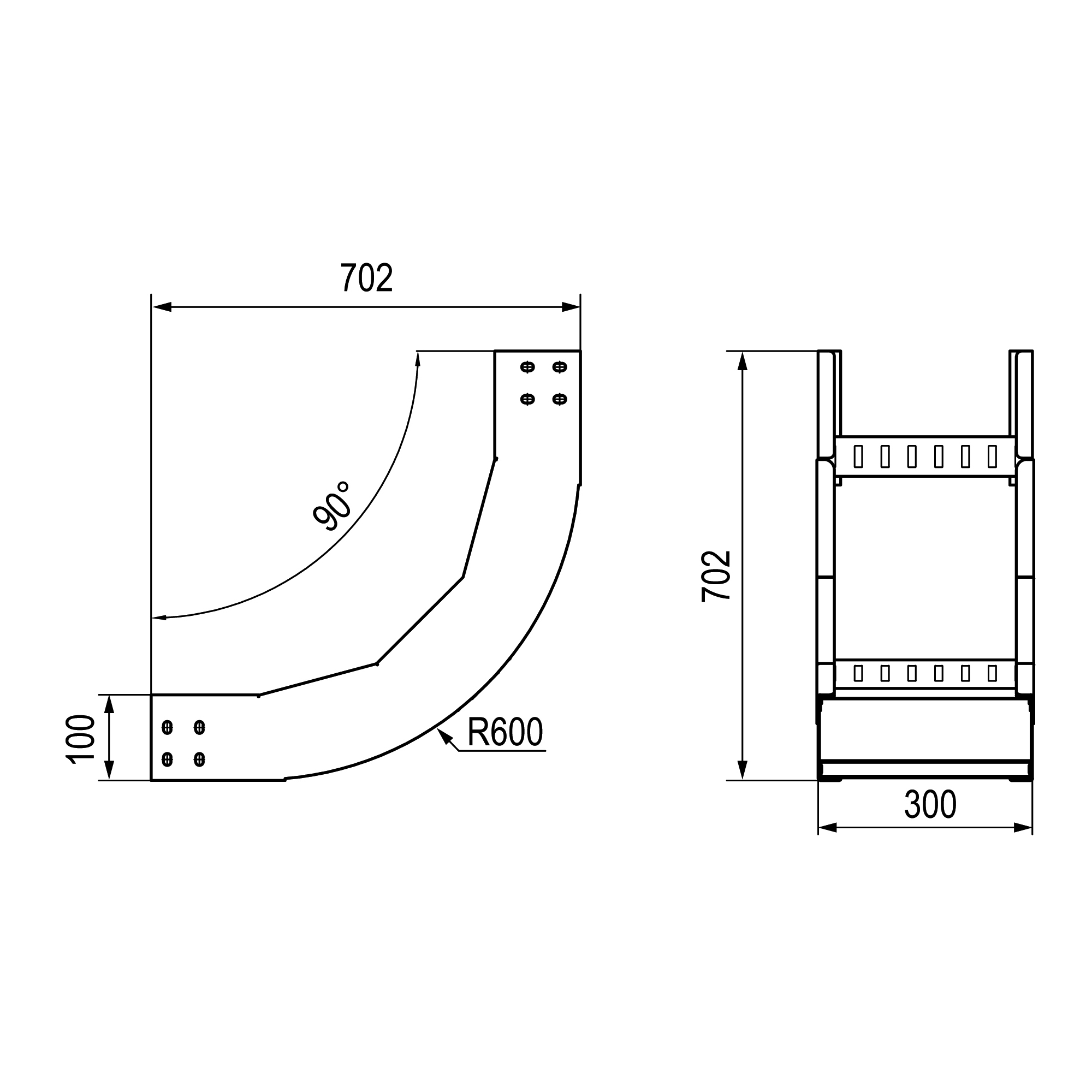

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
