Vertical bend 80х300, hot-dip galvanized

Code: LE8003HDZ

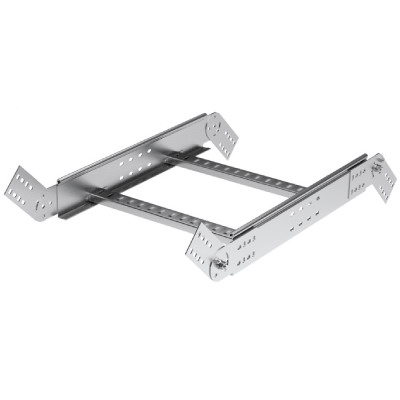

Vertical bend 80х300, hot-dip galvanized
Vertical bend 80х300, hot-dip galvanized

Vertical bend 80х300, hot-dip galvanized

Code: LE8003HDZ
Colour Light grey
Model Without connector
Surface protection Hot-dip galvanized
Type of rung Perforated profile
Hinging Yes
Material quality Steel
Material Steel
Cable ladder width, mm 300
Cable ladder height, mm 80
Stainless steel, pickled No
Wide span model No
Type of side joist Profile (open)
Suitable for circuit integrity No
Product type System accessories
Type of accessories Adjustable vertical joint
Height 80 mm
Side rail thickness 1.2 mm
Material Hot-dip galvanized
Width 300 mm

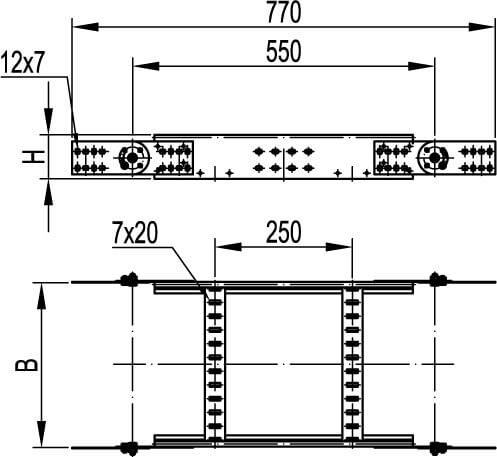

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
726.23 Kb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
5.28 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
16.42 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
17.38 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
27.26 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
11.67 Mb
