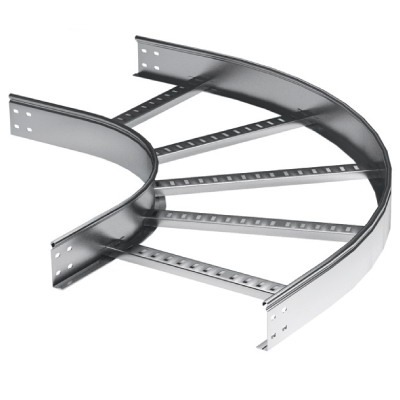

Horizontal bend 90° 80x300 R300, hot-dip galvanized

Code: LC8330HDZ
Horizontal bend 90° 80x300 R300, hot-dip galvanized
  • To ask a question
Ширина -
Surface protection Hot-dip galvanized
Type of rung Perforated profile
Material Steel
Inner radius, mm 300
Type of side joist Profile (open)
Deflection (angle) 90°
Cable ladder width, mm 300
Cable ladder height, mm 80
Change of direction Horizontal
Side wall perforation No
Material quality Steel
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
Type of accessories 90º Horizontal bend
Product type System accessories
Height 80 mm
Width 300 mm
Material Hot-dip galvanized

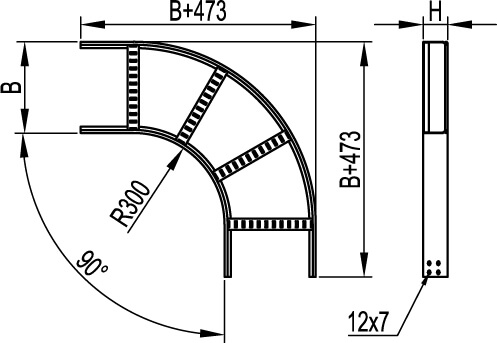

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
