| Mounting method | DIN rail (top hat rail) 35 mm |
| Colour | Grey |
| Rated voltage, V | 800 |
| Length, mm | 36 |
| Operating temperature, °C | -40...80 |
| Width/grid dimension, mm | 5.2 |
| Closing plate required | Yes |
| Number of levels | 1 |
| Connectable conductor cross section solid-core, mm² | 0.2...4 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...1.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...2.5 |
| Connectable conductor cross section multi-wired, mm² | 0.2...1.5 |
| Rated current In, A | 24 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Height at lowest possible mounting height, mm | 30 |

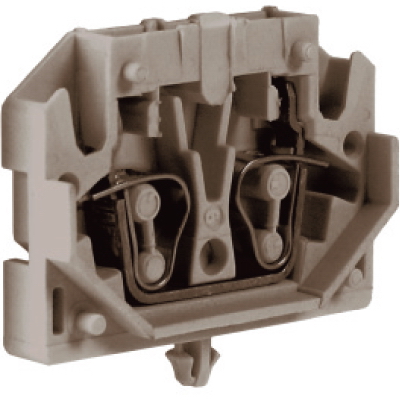

| Product type | Terminal block |
| Clamp type | Spring clamp |
| Cross-section | 2,5 mm² |
| Width | 5,2 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
