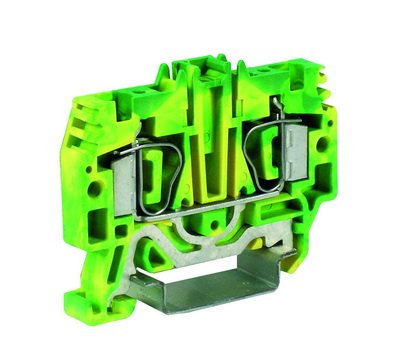

HTE.6 EARTH TERMINAL BLOCK
Code: ZHT320
HTE.6 EARTH TERMINAL BLOCK
Code: ZHT320
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Green/yellow |
| Length, mm | 62 |
| Operating temperature, °C | -40...80 |
| Closing plate required | Yes |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Connectable conductor cross section solid-core, mm² | 0.2...10 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...4 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...6 |
| Connectable conductor cross section multi-wired, mm² | 0.2...2.5 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Flat plug-in connection |
| Type of electrical connection 2 | Flat plug-in connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Width/grid dimension, mm | 8.2 |
| Height at lowest possible mounting height, mm | 44 |
| Product type | Terminal block |
| Clamp type | Spring clamp |
| Cross-section | 6 mm² |
| Width | 8,2 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
| PE | PE |
