Width, mm 600
Model Without connector
Height, mm 100
Surface protection Hot-dip galvanized
Material quality Other
Length, mm 3000
Material Steel
Wire cross-section, mm 5
Integrated partition None
Useful cross section, mm² 60000
Profile shape U-shape
Stainless steel, pickled No
Wide span model No
Srewless connector No
Height, mm 100
Width, mm 600
Length, mm 3000
Average filled area, sq.mm 60000
Material HDZ

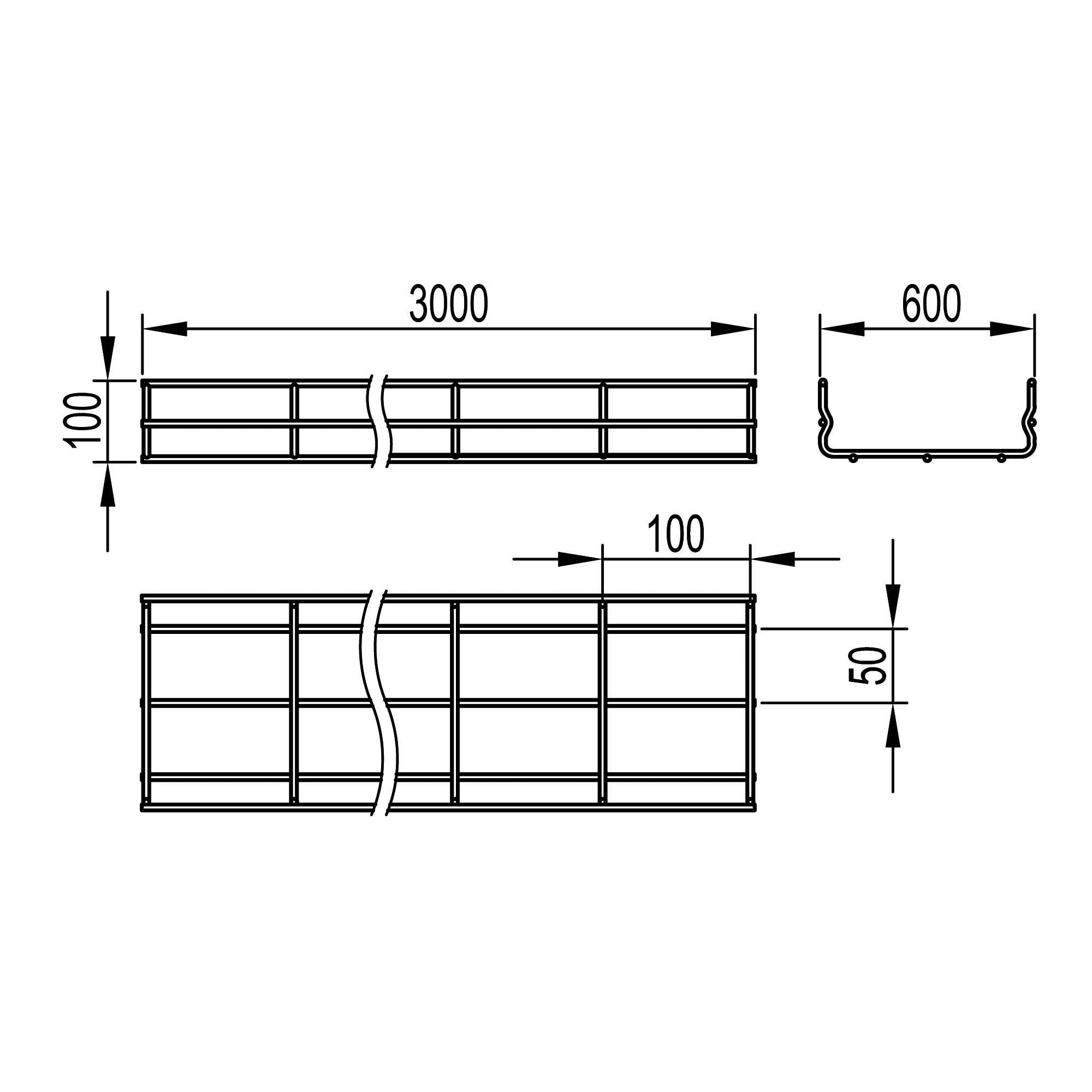

Drawings
Seria Name Autodesk Revit Intergraph DWG (dynamic blocks)
F5 Combitech - metal wire mesh trays
F5 Combitech - metal wire mesh trays
F5 Combitech - metal wire mesh trays
