Width, mm 150
Model Without connector
Height, mm 100
Surface protection Hot-dip galvanized
Material quality Other
Length, mm 3000
Material Steel
Wire cross-section, mm 4
Integrated partition None
Useful cross section, mm² 15000
Profile shape U-shape
Stainless steel, pickled No
Wide span model No
Srewless connector No
Height, mm 100
Width, mm 150
Length, mm 3000
Average filled area, sq.mm 15000
Material Hot-dip galvanized

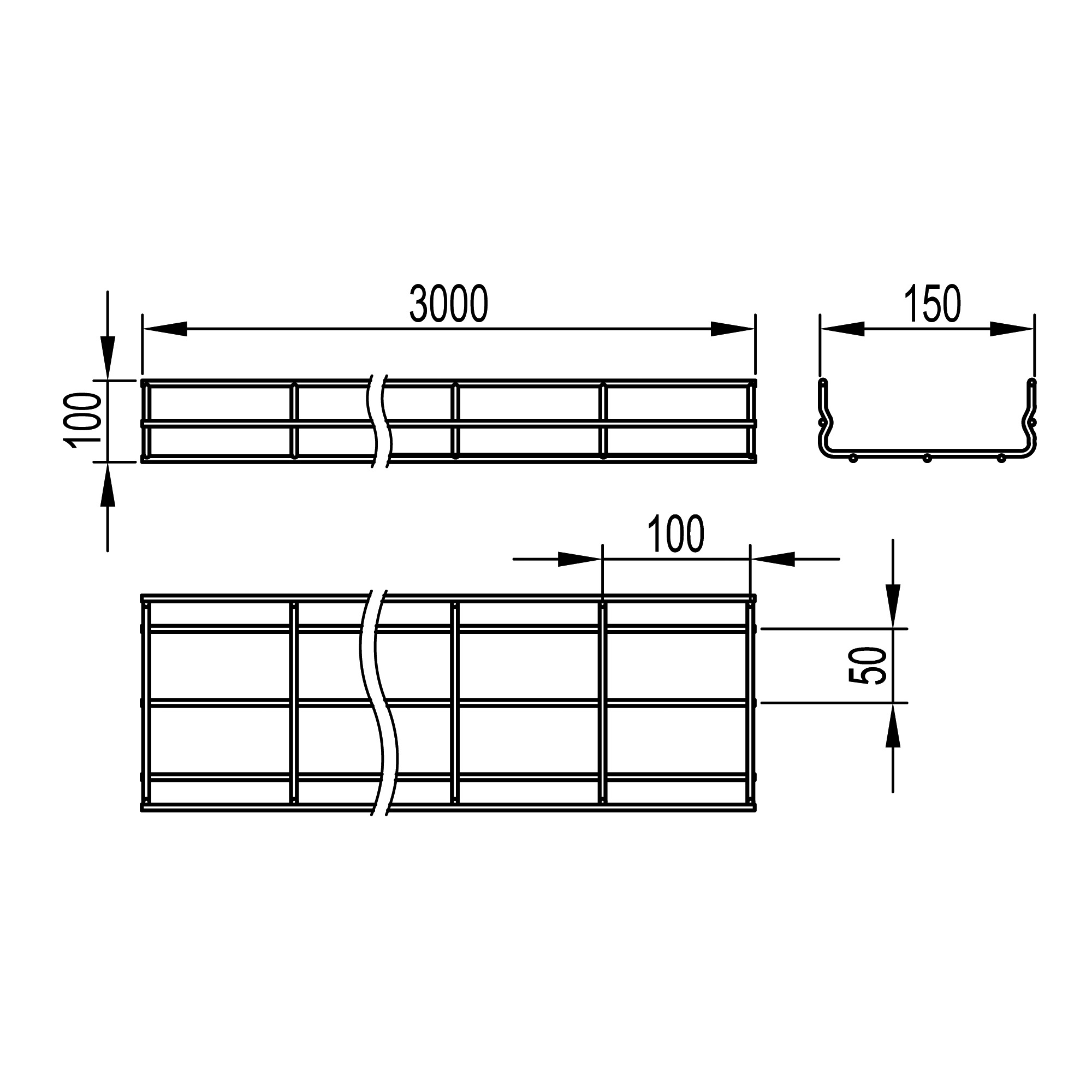

Drawings
Seria Name Autodesk Revit Intergraph DWG (dynamic blocks)

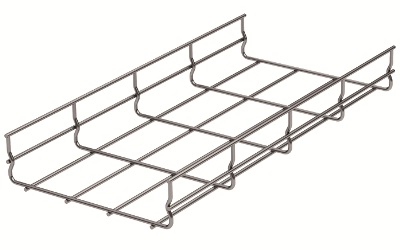

F5 Combitech - metal wire mesh trays
F5 Combitech - metal wire mesh trays
F5 Combitech - metal wire mesh trays
Certificates
Name Document
