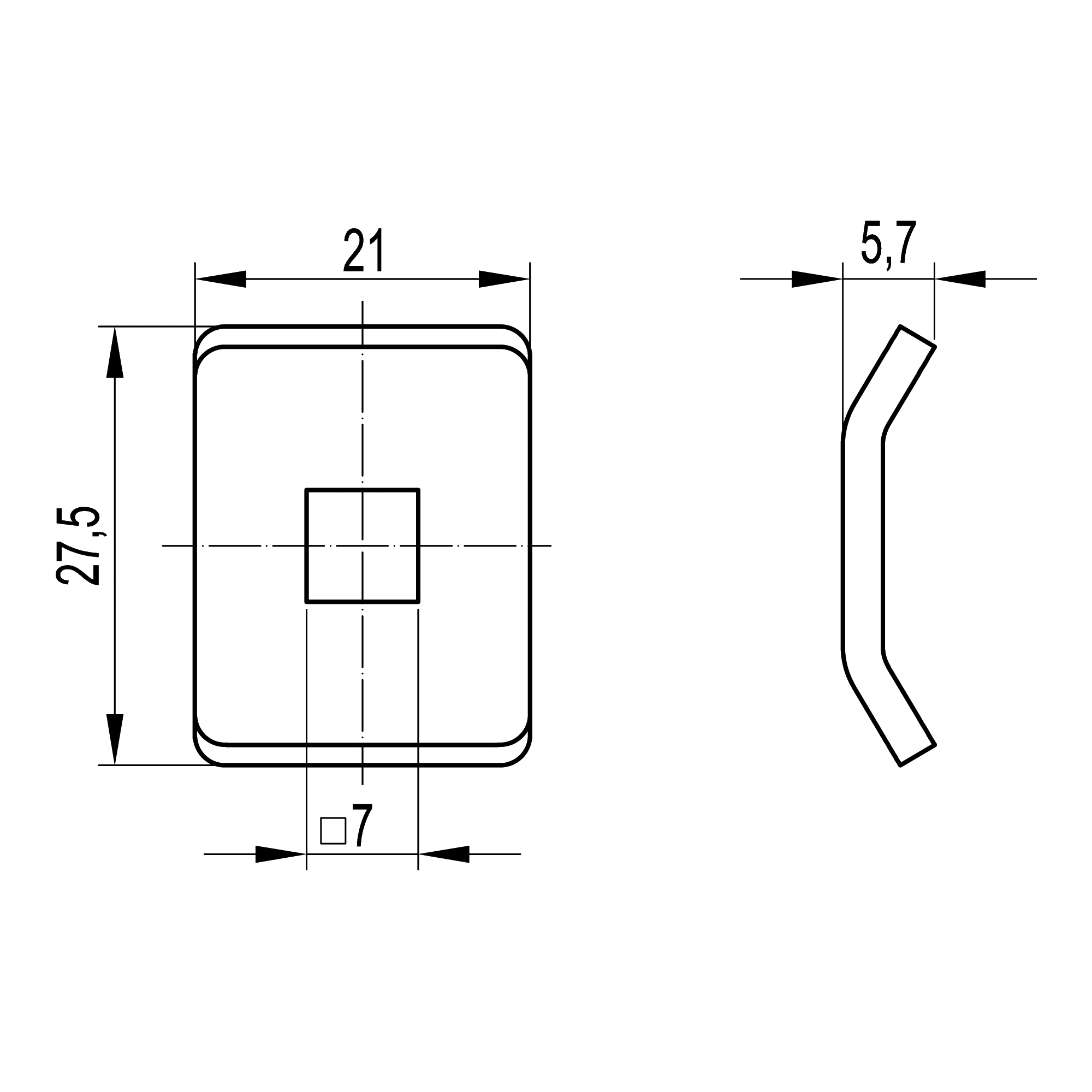

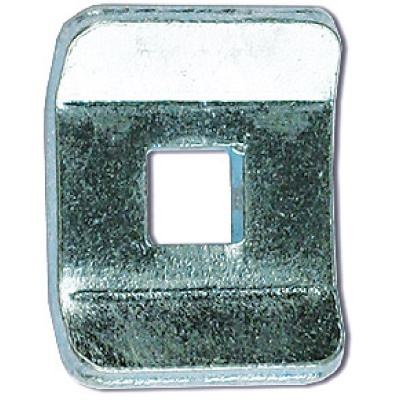

Nut for joining mesh cable trays (with bolt M6x20) HDZ

Code: CM170600HDZ
Nut for joining mesh cable trays (with bolt M6x20) HDZ
Nut for joining mesh cable trays (with bolt M6x20) HDZ
Outer diameter, mm 24.25
Inner diameter, mm 7
Thickness, mm 5.7
Surface protection Hot dip galvanized
Material quality C45 (steel)
Facet No
Material Steel
Suitable for bolt size metric (M..) 6
Hardened No
Width, mm 21
Length, mm 27,5
