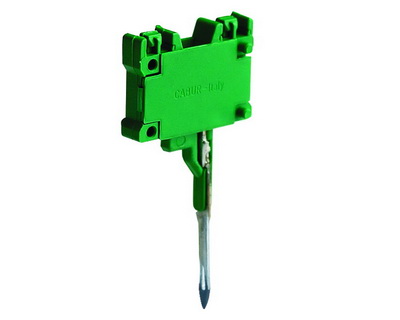

POLARISATION ELEMENT
Code: ZDCPOL
POLARISATION ELEMENT
Code: ZDCPOL
Rated voltage, V | 400 |
Number of poles | 1 |
Tackable | Yes |
Strip length, mm | 10 |
Connectable conductor cross section solid-core, mm² | 2.5...2.5 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 1.5...1.5 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 2.5...2.5 |
Connectable conductor cross section multi-wired, mm² | 2.5...2.5 |
Type of electric connection | Spring clamp connection |
Product type | Accessory |
Type of accessories | Test socket |
Drawings
Seria | Name | STEP | Eplan |
---|---|---|---|
DIN- rail mounting terminal blo -"Quadro"
|
|
||
DIN- rail mounting terminal blo -"Quadro"
|
|
