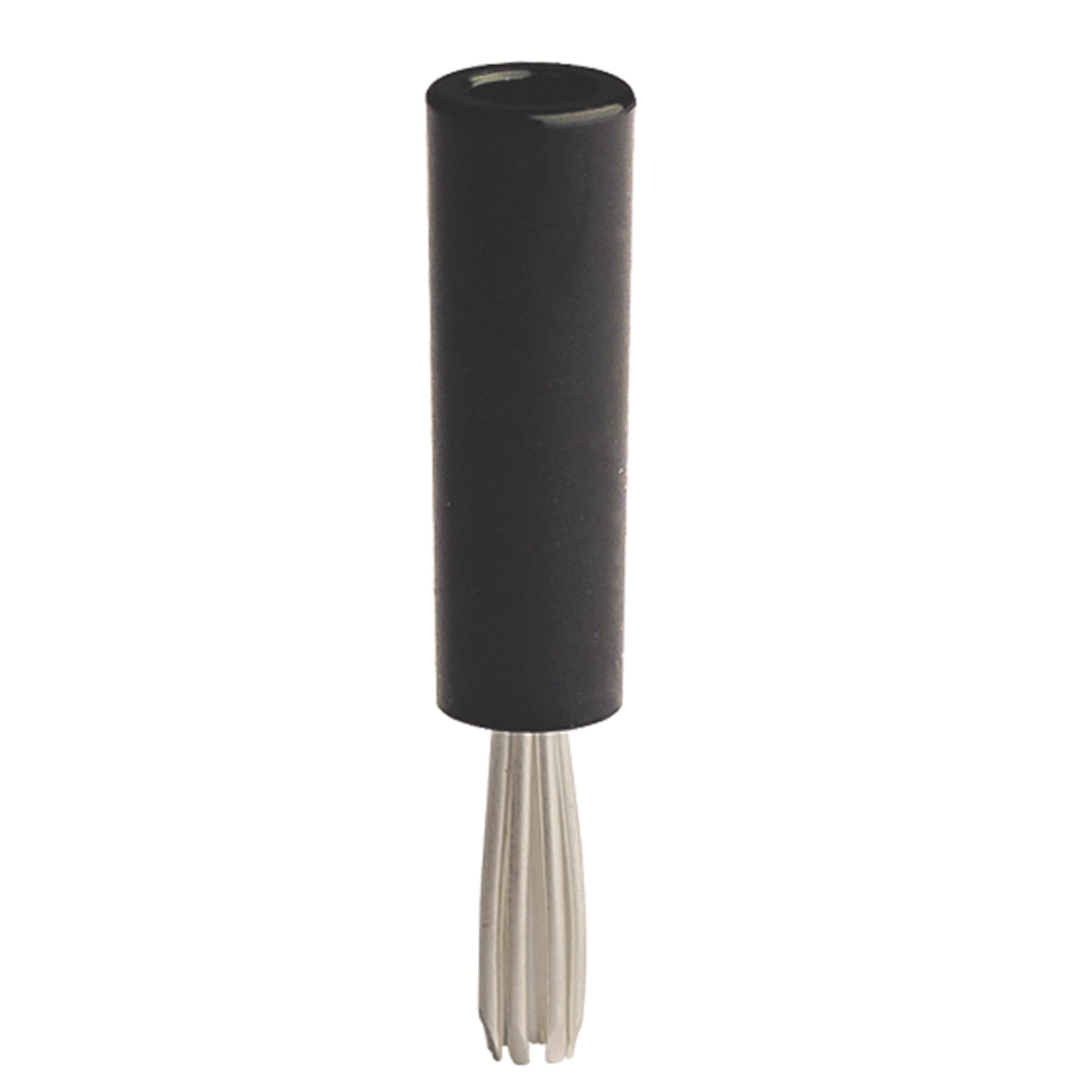

SDD/2 4 TEST PLUG SOCKET

Code: ZDD002-RET
SDD/2 4 TEST PLUG SOCKET
SDD/2 4 TEST PLUG SOCKET
Nominal rated voltage, V 400
Number of poles 1
Tackable No
Strip length, mm 10
Connectable conductor cross section solid-core, mm² 2.5
Connectable conductor cross section fine-strand with cable end sleeve, mm² 1.5
Connectable conductor cross section fine-strand without cable end sleeve, mm² 2.5
Connectable conductor cross section multi-wired, mm² 2.5
Type of electric connection Other
