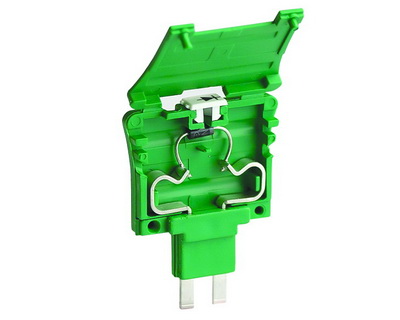

CPF/5 FUSE-HOLDER CARTRIDGE
Code: ZCPF501-RET
CPF/5 FUSE-HOLDER CARTRIDGE
Code: ZCPF501-RET
| Mounting method | DIN rail (top hat rail) 15 mm |
| Colour | Green |
| Length, mm | 20 |
| Operating temperature, °C | -40…80 |
| Width/grid dimension, mm | 6 |
| Height at lowest possible mounting height, mm | 33 |
| Closing plate required | No |
| Voltage type for indication | AC/DC |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Other |
| Type of electrical connection 2 | Other |
| Material insulation body | Other |
| Connection position | Above |
Drawings
| Seria | Name | STEP | Eplan |
|---|---|---|---|
|
DIN- rail mounting terminal blo -"Quadro"
|
|
||
|
DIN- rail mounting terminal blo -"Quadro"
|
|
