Mounting method DIN rail (top hat rail) 35 mm
Colour Beige
Nominal rated voltage, V 800...800
Length, mm 53
Operation temperature, °C -40…80
Width/grid dimension, mm 48
Closing plate required Yes
Type of fuse holder Screwable
Number of levels 1
Voltage type for defect indication AC/DC
Direction of coding Horizontal and vertical
Connectable conductor cross section solid-core, mm² 0.5…1
Connectable conductor cross section multi-wired, mm² 0.5...1.5
Rated current In, A 15
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Plug-in connection
Type of electrical connection 2 Plug-in connection
Material insulation body Other
Connection position Above

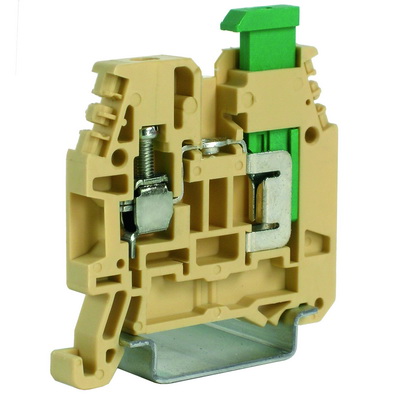

Product type Terminal block
Clamp type Insulation cutting
Cross-section 1,5 mm²
Width 5,2 mm
Q'ty of poles 2
Number of levels 1
