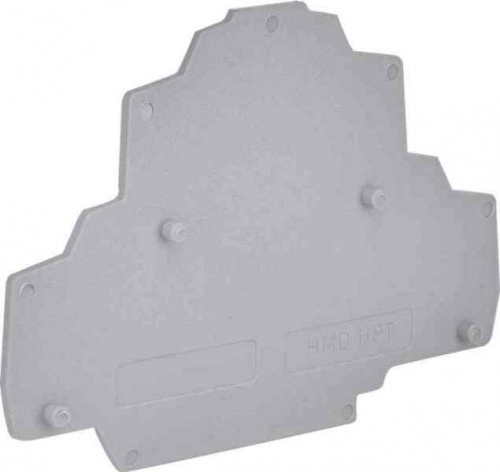

HMD.1/PT/GR END SECTION

Code: ZHD201GR
HMD.1/PT/GR END SECTION
HMD.1/PT/GR END SECTION

HMD.1/PT/GR END SECTION

Code: ZHD201GR
Colour Grey
Thickness, mm 1
Snap in Yes
Type of end plate Yes
Type of partition Yes
Inflammability class of insulation material according to with UL94 V0
Product type Accessory
Type of accessories End cover
Width 1 mm
Drawings
Seria Name STEP Eplan
DIN- rail mounting terminal blo -"Quadro"
The system "Quadro" - teminal
XLS
300 Kb
DIN- rail mounting terminal blo -"Quadro"
The System "Quadro"
RAR
27.23 Mb
