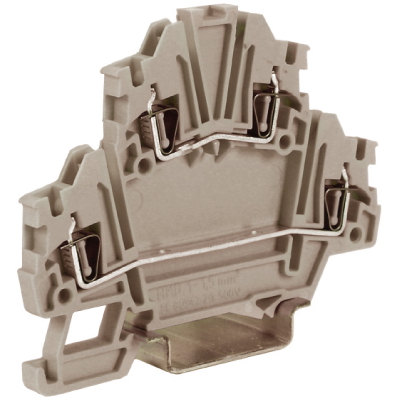

Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Nominal rated voltage, V 500
Length, mm 73
Operation temperature, °C -40…80
Width/grid dimension, mm 4.2
Closing plate required Yes
Type of fuse holder Screwable
Number of levels 2
Voltage type for defect indication AC/DC
Direction of coding Horizontal and vertical
Connectable conductor cross section solid-core, mm² 0.2…2.5
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.5…0.75
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.2…1.5
Connectable conductor cross section multi-wired, mm² 0.2…0.75
Rated current In, A 17.5
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Plug-in connection
Type of electrical connection 2 Plug-in connection
Material insulation body Other
Connection position Above
Height at lowest possible mounting height, mm 59
Color gray
Material of case Ployamide
Height, mm 59
Width, mm 73
Thickness, mm 4,2
Temperature of mounting, °C -40...+80
Summarized profile area (max), sq.mm 2,5
Temperature of operation, °C -40 - +80
Voltage of disruption, V 6000
