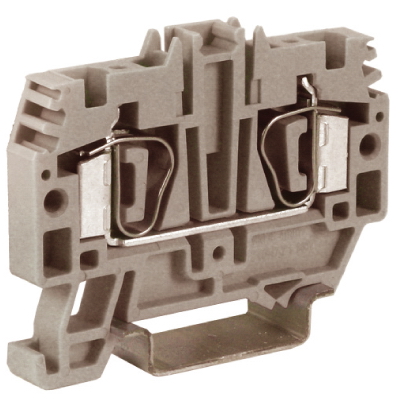

HMM.4/GR FEED-THROUGH TERMINAL BLOCK
Code: ZHM250GR
HMM.4/GR FEED-THROUGH TERMINAL BLOCK
Code: ZHM250GR
Removed from the product range
| Number of levels | 1 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Colour | Grey |
| Operating temperature, °C | -40...80 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Thermoplastic |
| Product type | Terminal block |
| Clamp type | Spring clamp |
| Cross-section | 4 mm² |
| Width | 6,2 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
Accessories
Drawings
| Seria | Name | STEP | Eplan |
|---|---|---|---|
|
DIN- rail mounting terminal blo -"Quadro"
|
|
||
|
DIN- rail mounting terminal blo -"Quadro"
|
|
