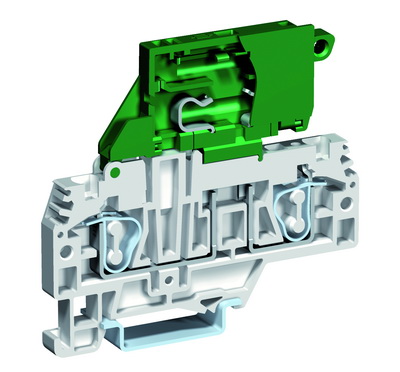

| Model | Fuse base |
| Rated permanent current Iu, A | 6.3…10 |
| Number of poles | 1 |
| Distance between rail centre, 50 mm | No |
| Distance between rail centre, 40 mm | No |
| Distance between rail centre, 60 mm | No |
| Construction size fuse insert | Other |
| Distance between rail centre, 100 mm | No |
| Distance between rail centre, 185 mm | No |
| Type of electrical connection of main circuit | Spring clamp connection |
| Double interrupting | No |
| Max. rated operation voltage Ue AC, V | 500 |
| Product type | Terminal block |
| Clamp type | Spring clamp |
| Cross-section | 4 mm² |
| Width | 8,2 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
| Knife disconnect | Disconnector |
