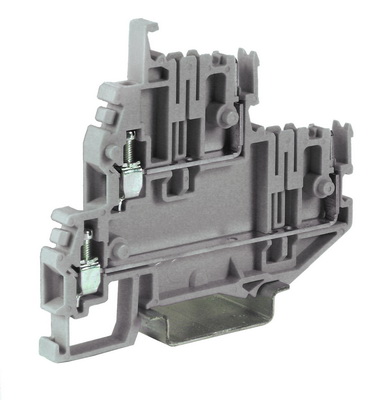

VPD.2/4/GR 2 LEVELS FEED-THROUGH T.B.
Code: ZVP500GR
VPD.2/4/GR 2 LEVELS FEED-THROUGH T.B.
Code: ZVP500GR
Basic colour | Grey |
Mounting method | DIN rail (top hat rail) 15 mm |
Rated voltage, V | 320 |
Length, mm | 74 |
Operating temperature, °C | -40…80 |
Width/grid dimension, mm | 5.08 |
Closing plate required | Yes |
Number of potentials | 2 |
Connectable conductor cross section solid-core, mm² | 0.2…4 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5…1.5 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2…2.5 |
Connectable conductor cross section multi-wired, mm² | 0.2…1.5 |
Rated current In, A | 24...12 |
Inflammability class of insulation material according to with UL94 | V0 |
Type of electrical connection 1 | Clip connection |
Type of electrical connection 2 | Clip connection |
Material insulation body | Thermoplastic |
Connection position | Sideways |
Height at lowest possible mounting height, mm | 64 |
Product type | Terminal block |
Clamp type | Screw clamp |
Cross-section | 2,5 mm² |
Width | 5,08 mm |
Q'ty of poles | 4 |
Number of levels | 2 |
