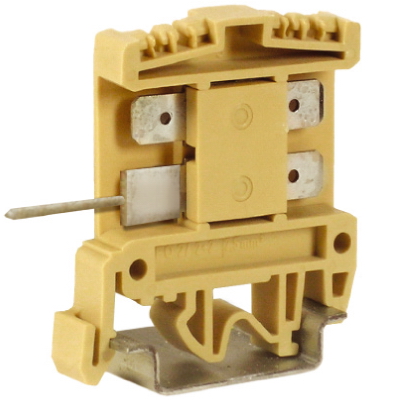

AFO.2/2+2 FEED-THROUGH TERMINAL BLOCK
Code: ZAF400
AFO.2/2+2 FEED-THROUGH TERMINAL BLOCK
Code: ZAF400
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Beige |
| Rated voltage, V | 400 |
| Length, mm | 44 |
| Operating temperature, °C | -40...80 |
| Width/grid dimension, mm | 6.5 |
| Closing plate required | Yes |
| Number of levels | 1 |
| Connectable conductor cross section solid-core, mm² | 2.5...2.5 |
| Rated current In, A | 20 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Flat plug-in connection |
| Type of electrical connection 2 | Flat plug-in connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Height at lowest possible mounting height, mm | 49 |
| Product type | Terminal block |
| Clamp type | Special clamp |
| Cross-section | 2,5 mm² |
| Width | 6,5 mm |
| Q'ty of poles | 4 |
| Number of levels | 1 |
