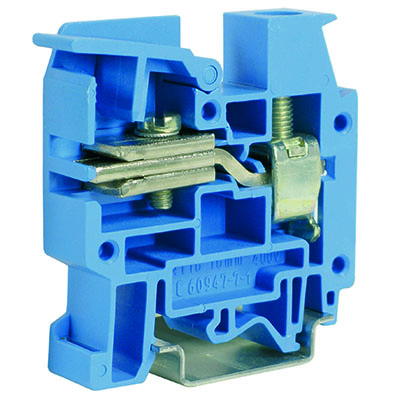

CNT.35 NEUTRAL DISCONNECT TERMINAL
Code: ZCNT35
CNT.35 NEUTRAL DISCONNECT TERMINAL
Code: ZCNT35
| Mounting method | Other |
| Colour | Blue |
| Rated voltage, V | 400 |
| Number of clamp positions | 1 |
| Length, mm | 56 |
| Operating temperature, °C | -40…80 |
| Width/grid dimension, mm | 16 |
| Suitable for N-busbar | 3x10 mm |
| Connectable conductor cross section solid-core, mm² | 2.5…50 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 2…16 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 2…35 |
| Connectable conductor cross section multi-wired, mm² | 2…16 |
| Rated current In, A | 125 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material insulation body | Other |
| Type of electric connection | Screw connection |
| Height at lowest possible mounting height, mm | 62 |
| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 35 mm² |
| Width | 16 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
