Color gray
Material of case Polyamide
Mounting method Other

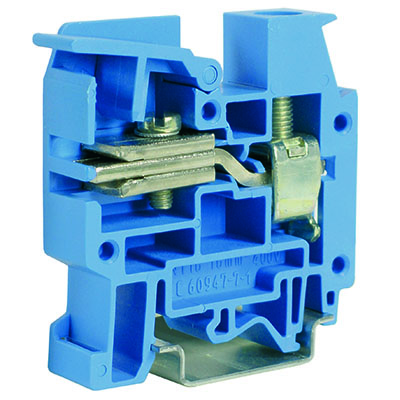

Colour Blue
Nominal rated voltage, V 400
Number of clamp positions 1
Length, mm 53
Operation temperature, °C -40…80
Width/grid dimension, mm 12
Suitable for N-busbar 3x10 mm
Connectable conductor cross section solid-core, mm2 0.5…25
Connectable conductor cross section fine-strand with cable end sleeve, mm2 0.5...10
Connectable conductor cross section fine-strand without cable end sleeve, mm2 0.5…16
Connectable conductor cross section multi-wired, mm2 0.5…6
Rated current In, A 76
Inflammability class of insulation material acc. with UL94 V0
Material insulation body Other
Type of electric connection Screw connection
Height at lowest possible mounting height, mm 56
Accessories
CNT16/PT END SECTION
Code: ZCNT161
No name
Code: ZCNTSU
