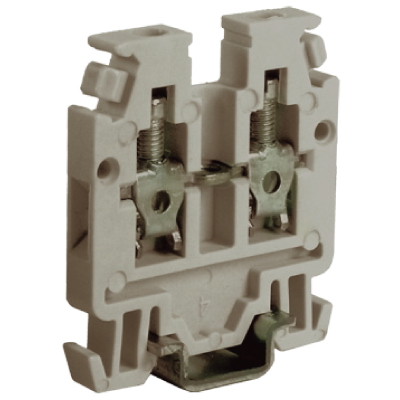

RN.1/2,5 FEED-THROUGH TERMINAL BLOCK
Code: ZRN400
RN.1/2,5 FEED-THROUGH TERMINAL BLOCK
Code: ZRN400
| Mounting method | DIN rail (top hat rail) 15 mm |
| Colour | Blue |
| Rated voltage, V | 500 |
| Length, mm | 27 |
| Operating temperature, °C | -40...80 |
| Width/grid dimension, mm | 4.2 |
| Closing plate required | Yes |
| Number of levels | 1 |
| Connectable conductor cross section solid-core, mm² | 0.2...2.5 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.2...0.75 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...1.5 |
| Connectable conductor cross section multi-wired, mm² | 0.2...0.75 |
| Rated current In, A | 17.5 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Plug-in connection |
| Type of electrical connection 2 | Plug-in connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Height at lowest possible mounting height, mm | 32 |
| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 1,5 mm² |
| Width | 4,2 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
