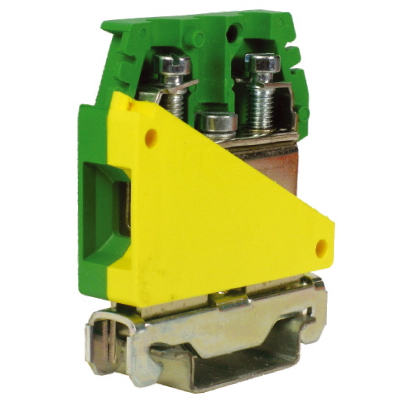

TE.16/O EARTH TERMINAL BLOCK

Code: ZTO210
TE.16/O EARTH TERMINAL BLOCK
TE.16/O EARTH TERMINAL BLOCK
Code: ZTO210
Removed from the product range . Proposed replacement: KRUSLG-16N
  • To ask a question
  • Characteristics
  • Drawings
  • Certificates
  • Promo
  • Viewed items
Mounting method DIN rail (top hat rail)/G-rail TH35/G32
Colour Green/yellow
Operating temperature, °C -40...80
Closing plate required Yes
Number of levels 1
Connectable conductor cross section solid-core, mm² 16...16
Connectable conductor cross section fine-strand with cable end sleeve, mm² 16...16
Connectable conductor cross section fine-strand without cable end sleeve, mm² 16...16
Connectable conductor cross section multi-wired, mm² 16...16
Inflammability class of insulation material according to with UL94 V0
Material insulation body Thermoplastic
Product type Terminal block
Clamp type Screw clamp
Cross-section 16 mm²
Width 12 mm
Q'ty of poles 2
Number of levels 1
PE PE
