Code: ZTO120
ColourGreen-yellow
Length, mm44
Operation temperature, °COperation temperature, °C-40…80
Width/grid dimension, mm8
Height at lowest possible mounting height, mm52
Closing plate requiredYes
Number of levels1
Number of clamp positions per level1
Connectable conductor cross section solid-core, mm?0.2…10
Connectable conductor cross section fine-strand with cable end sleeve, mm?0.5…4
Connectable conductor cross section fine-strand without cable end sleeve, mm?0.2…6
Connectable conductor cross section multi-wired, mm?0.2…2.5

Enclosures and accessories

System solutions

Seria Name Eplan STEP DWG
Quadro - DIN- rail mounting terminal blocks TEC.6/O EARTH TERMINAL BLOCK Link Link
The System "Quadro" Link
The system "Quadro" - teminal Link

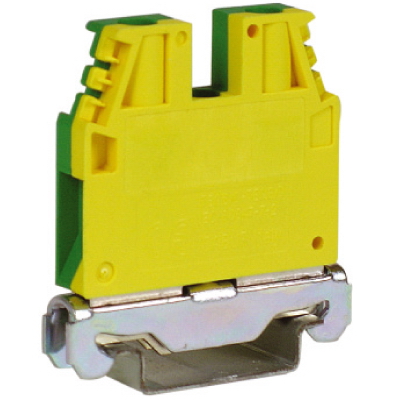

TEC.6/O, ground terminal yellow.green 6 sq. mm Link
