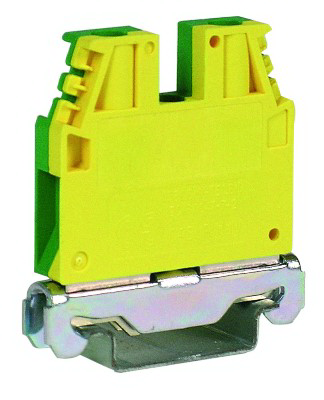

EARTH TERMINAL BLOCK
Code: ZTO120-RET
EARTH TERMINAL BLOCK
Code: ZTO120-RET
Removed from the product range
Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
Colour | Green/yellow |
Length, mm | 44 |
Operating temperature, °C | -40...80 |
Closing plate required | Yes |
Number of levels | 1 |
Number of clamp positions per level | 1 |
Connectable conductor cross section solid-core, mm² | 0.2...10 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...4 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...6 |
Connectable conductor cross section multi-wired, mm² | 0.2...2.5 |
Inflammability class of insulation material according to with UL94 | V0 |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Material insulation body | Thermoplastic |
Connection position | Above |
Width/grid dimension, mm | 8 |
Height at lowest possible mounting height, mm | 52 |
Product type | Terminal block |
Clamp type | Screw clamp |
Cross-section | 6 mm² |
Width | 8 mm |
Q'ty of poles | 2 |
Number of levels | 1 |
PE | PE |
