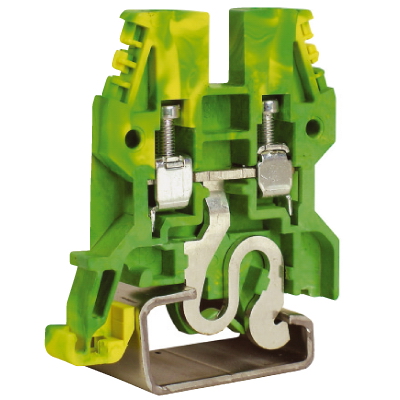

Mounting method DIN rail (top hat rail)/G-rail
Colour Green-yellow
Length, mm 50
Operation temperature, °C -40…80
Closing plate required Yes
Number of levels 1
Number of clamp positions per level 1
Connectable conductor cross section solid-core, mm² 0.2…6
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.5…2.5
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.2…4
Connectable conductor cross section multi-wired, mm² 0.2…1.5
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Polyamide (PA)
Connection position Above
Width/grid dimension, mm 6.5
Height at lowest possible mounting height, mm 56
Temperature of mounting, °C -40...+80
Temperature of operation, °C -40 - +80
Accessories
CCH/2,5-4 SCREWDRIVER
Code: ZCCH02
TE0.4/PT END SECTION
Code: ZTO431
BTU END BRACKET
Code: ZBT005
