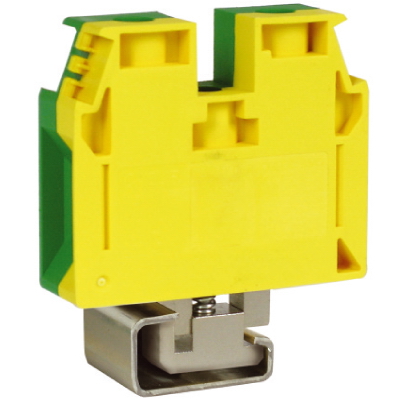

TEC.35/D EARTH TERMINAL BLOCK

Code: ZTE320

TEC.35/D EARTH TERMINAL BLOCK

Code: ZTE320
Mounting method DIN rail (top hat rail)/G-rail TH35/G32
Colour Green/yellow
Length, mm 56
Operating temperature, °C -40...80
Closing plate required Yes
Number of levels 1
Number of clamp positions per level 1
Connectable conductor cross section solid-core, mm² 2.5...50
Connectable conductor cross section fine-strand with cable end sleeve, mm² 2...2.5
Connectable conductor cross section fine-strand without cable end sleeve, mm² 2...35
Connectable conductor cross section multi-wired, mm² 2...16
Inflammability class of insulation material according to with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Thermoplastic
Connection position Above
Width/grid dimension, mm 16
Height at lowest possible mounting height, mm 64
Product type Terminal block
Clamp type Screw clamp
Cross-section 35 mm²
Width 16 mm
Q'ty of poles 2
Number of levels 1
PE PE
