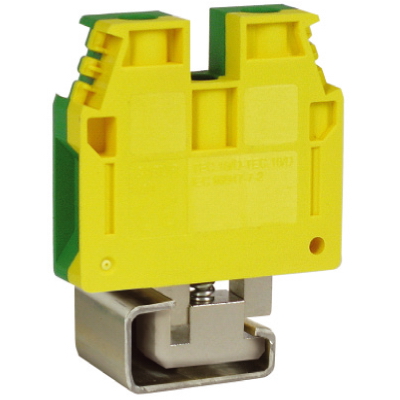

TEC.16/D EARTH TERMINAL BLOCK

Code: ZTE220
TEC.16/D EARTH TERMINAL BLOCK
TEC.16/D EARTH TERMINAL BLOCK
Color gray
Temperature of mounting, °C -40...+80
Temperature of usage, °C -40 - +80
Mounting method DIN rail (top hat rail)/G-rail
Colour Green-yellow
Length, mm 47
Operation temperature, °C -40…80
Closing plate required Yes
Number of levels 1
Number of clamp positions per level 1
Connectable conductor cross section solid-core, mm2 1.5…25
Connectable conductor cross section fine-strand with cable end sleeve, mm2 1…10
Connectable conductor cross section fine-strand without cable end sleeve, mm2 1…16
Connectable conductor cross section multi-wired, mm2 1…6
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Polyamide (PA)
Connection position Above
Width/grid dimension, mm 12
Height at lowest possible mounting height, mm 57
Accessories
DIN-rail, type G1, 32х15 mm
DIN-rail, type G1, 32х15 mm
Code: 02120
CDA/BT END BRACKET
CDA/BT END BRACKET
Code: ZCD003
