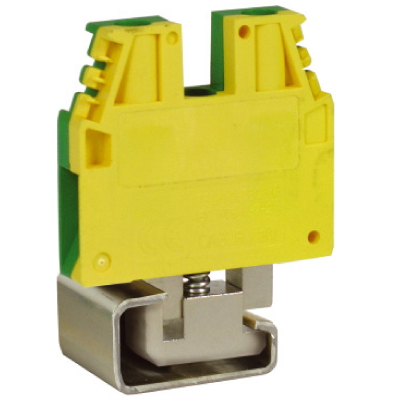

TEC.6/D EARTH TERMINAL BLOCK

Code: ZTE120

TEC.6/D EARTH TERMINAL BLOCK

Code: ZTE120
Mounting method DIN rail (top hat rail)/G-rail TH35/G32
Colour Green/yellow
Length, mm 44
Operating temperature, °C -40...80
Closing plate required Yes
Number of levels 1
Number of clamp positions per level 1
Connectable conductor cross section solid-core, mm² 0.2...10
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.5...4
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.2...6
Connectable conductor cross section multi-wired, mm² 0.2...2.5
Inflammability class of insulation material according to with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Thermoplastic
Connection position Above
Width/grid dimension, mm 8
Height at lowest possible mounting height, mm 53
Product type Terminal block
Clamp type Screw clamp
Cross-section 6 mm²
Width 8 mm
Q'ty of poles 2
Number of levels 1
PE PE
