Code: ZCE110
ColourGreen-yellow
Length, mm50
Operation temperature, °COperation temperature, °C-40…80
Width/grid dimension, mm5.5
Height at lowest possible mounting height, mm52
Closing plate requiredYes
Number of levels1
Number of clamp positions per level1
Connectable conductor cross section solid-core, mm?0.2…4
Connectable conductor cross section fine-strand with cable end sleeve, mm?0.5…1.5
Connectable conductor cross section fine-strand without cable end sleeve, mm?0.2…2.5
Connectable conductor cross section multi-wired, mm?0.2…1.5

Enclosures and accessories

System solutions

Seria Name Eplan STEP DWG

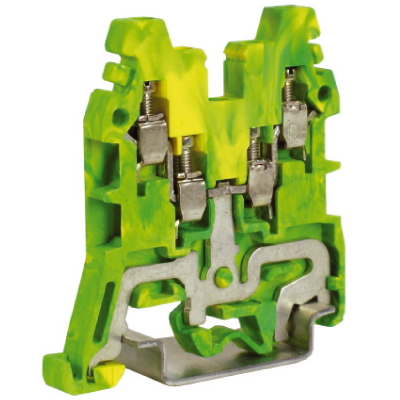

Quadro - DIN- rail mounting terminal blocks CBE.2 EARTH TERMINAL BLOCK 2IN/2OUT Link Link
The System "Quadro" Link
The system "Quadro" - teminal Link
CBE.2, ground terminal yellow.green 2.5 sq mm 2 input/2вывода Link
