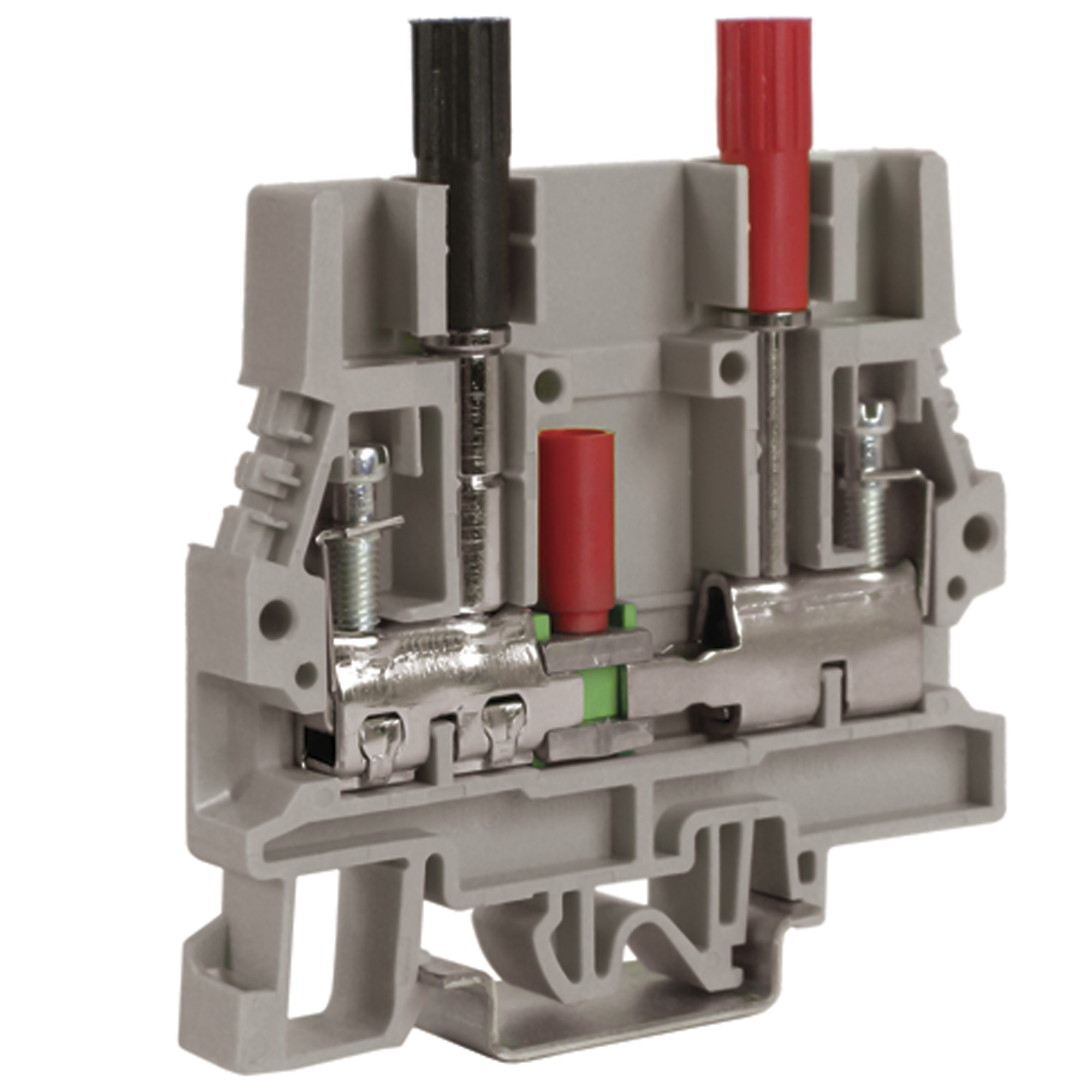

SCB.10/CD/GR DISCONNECT T. B.

Code: ZSB420GR
SCB.10/CD/GR DISCONNECT T. B.
SCB.10/CD/GR DISCONNECT T. B.
Code: ZSB420GR
  • To ask a question
  • Characteristics
  • Accessories
  • Drawings
  • Certificates
  • Promo
  • Viewed items
Mounting method DIN rail (top hat rail)/G-rail TH35/G32
Colour Grey
Rated voltage, V 1000
Length, mm 75
Operating temperature, °C -40...80
Width/grid dimension, mm 10
Height at lowest possible mounting height, mm 63.5
Closing plate required Yes
Type of slitting Sliding
Type of cross disconnection Sliding
With integrated test socket Yes
Number of levels 1
Number of clamp positions per level 1
Connectable conductor cross section solid-core, mm² 0.5...16
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.5...6
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.5...10
Connectable conductor cross section multi-wired, mm² 0.5...4
Rated current In, A 57
Inflammability class of insulation material according to with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Thermoplastic
Connection position Sideways
Product type Terminal block
Clamp type Screw clamp
Cross-section 10 mm²
Width 10,5 mm
Q'ty of poles 2
Number of levels 1
Knife disconnect Disconnector
