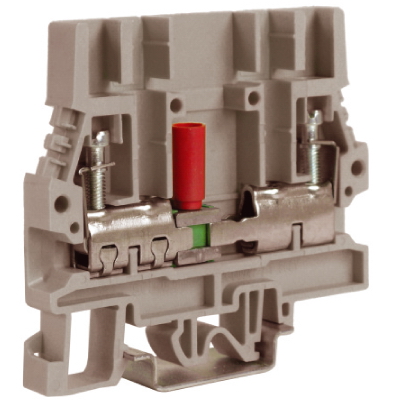

SCB.10 DISCONNECT T. B.
Code: ZSB400
SCB.10 DISCONNECT T. B.
Code: ZSB400
Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
Colour | Beige |
Rated voltage, V | 1000 |
Length, mm | 75 |
Operating temperature, °C | -40...80 |
Width/grid dimension, mm | 10 |
Height at lowest possible mounting height, mm | 63.5 |
Closing plate required | Yes |
Type of slitting | Sliding |
Type of cross disconnection | Sliding |
With integrated test socket | No |
Number of levels | 1 |
Number of clamp positions per level | 1 |
Connectable conductor cross section solid-core, mm² | 0.5…16 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5…6 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.5…10 |
Connectable conductor cross section multi-wired, mm² | 0.5…4 |
Rated current In, A | 57 |
Inflammability class of insulation material according to with UL94 | V0 |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Material insulation body | Thermoplastic |
Connection position | Sideways |
Product type | Terminal block |
Clamp type | Screw clamp |
Cross-section | 10 mm² |
Width | 10,5 mm |
Q'ty of poles | 2 |
Number of levels | 1 |
Knife disconnect | Disconnector |
