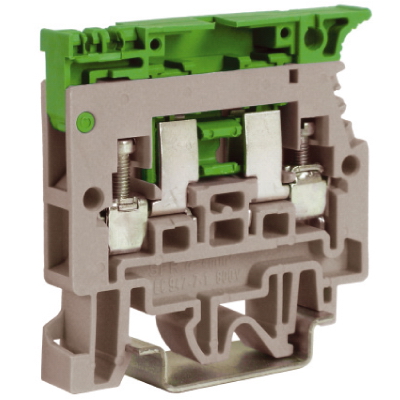

SFR.4/D1A T.B. WITH DIODE 1A

Code: ZSF901

SFR.4/D1A T.B. WITH DIODE 1A

Code: ZSF901
Model Fuse base
Rated permanent current Iu, A 6.3…16
Number of poles 1
Distance between rail centre, 50 mm No
Distance between rail centre, 40 mm No
Distance between rail centre, 60 mm No
Construction size fuse insert Other
Distance between rail centre, 100 mm No
Distance between rail centre, 185 mm No
Type of electrical connection of main circuit Screw connection
Double interrupting No
Max. rated operation voltage Ue AC, V 630
Product type Terminal block
Clamp type Screw clamp
Cross-section 4 mm²
Width 8 mm
Q'ty of poles 2
Number of levels 1
Knife disconnect Disconnector
Accessories
Drawings
Seria Name STEP Eplan DWG
DIN- rail mounting terminal blo -"Quadro"
DIN- rail mounting terminal blo -"Quadro"
DIN- rail mounting terminal blo -"Quadro"
