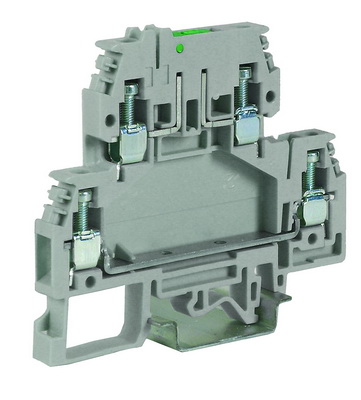

DSFA.4/L24 T.B. WITH CIRCUIT LED
Code: ZDA124
DSFA.4/L24 T.B. WITH CIRCUIT LED
Code: ZDA124
Mounting method | DIN rail (top hat rail) 15 mm |
Colour | Beige |
Length, mm | 78 |
Operating temperature, °C | -40…80 |
Width/grid dimension, mm | 6 |
Height at lowest possible mounting height, mm | 68 |
Closing plate required | Yes |
Type of indication element | LED |
Number of levels | 2 |
Number of clamp positions per level | 1 |
Supply voltage for indication, V | 24 |
Voltage type for indication | AC/DC |
Connectable conductor cross section solid-core, mm² | 0.2…6 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5…2.5 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2…4 |
Connectable conductor cross section multi-wired, mm² | 0.2…1.5 |
Inflammability class of insulation material according to with UL94 | V0 |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Spring clamp connection |
Material insulation body | Other |
Connection position | Above |
Product type | Terminal block |
Clamp type | Screw clamp |
Cross-section | 4 mm² |
Width | 6 mm |
Q'ty of poles | 4 |
Number of levels | 2 |
Knife disconnect | Disconnector |
