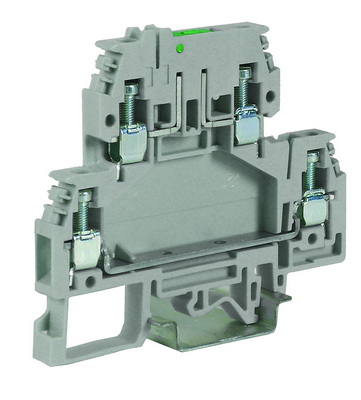

DSFA.4/L12 T.B. WITH CIRCUIT LED
Code: ZDA112
DSFA.4/L12 T.B. WITH CIRCUIT LED
Code: ZDA112
| Mounting method | DIN rail (top hat rail) 15 mm |
| Colour | Beige |
| Length, mm | 78 |
| Operating temperature, °C | -40…80 |
| Width/grid dimension, mm | 6 |
| Height at lowest possible mounting height, mm | 68 |
| Closing plate required | Yes |
| Type of indication element | LED |
| Number of levels | 2 |
| Number of clamp positions per level | 1 |
| Supply voltage for indication, V | 12 |
| Voltage type for indication | AC/DC |
| Connectable conductor cross section solid-core, mm² | 0.2…6 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5…2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2…4 |
| Connectable conductor cross section multi-wired, mm² | 0.2…1.5 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Other |
| Connection position | Above |
| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 4 mm² |
| Width | 6 mm |
| Q'ty of poles | 4 |
| Number of levels | 2 |
| Knife disconnect | Disconnector |
