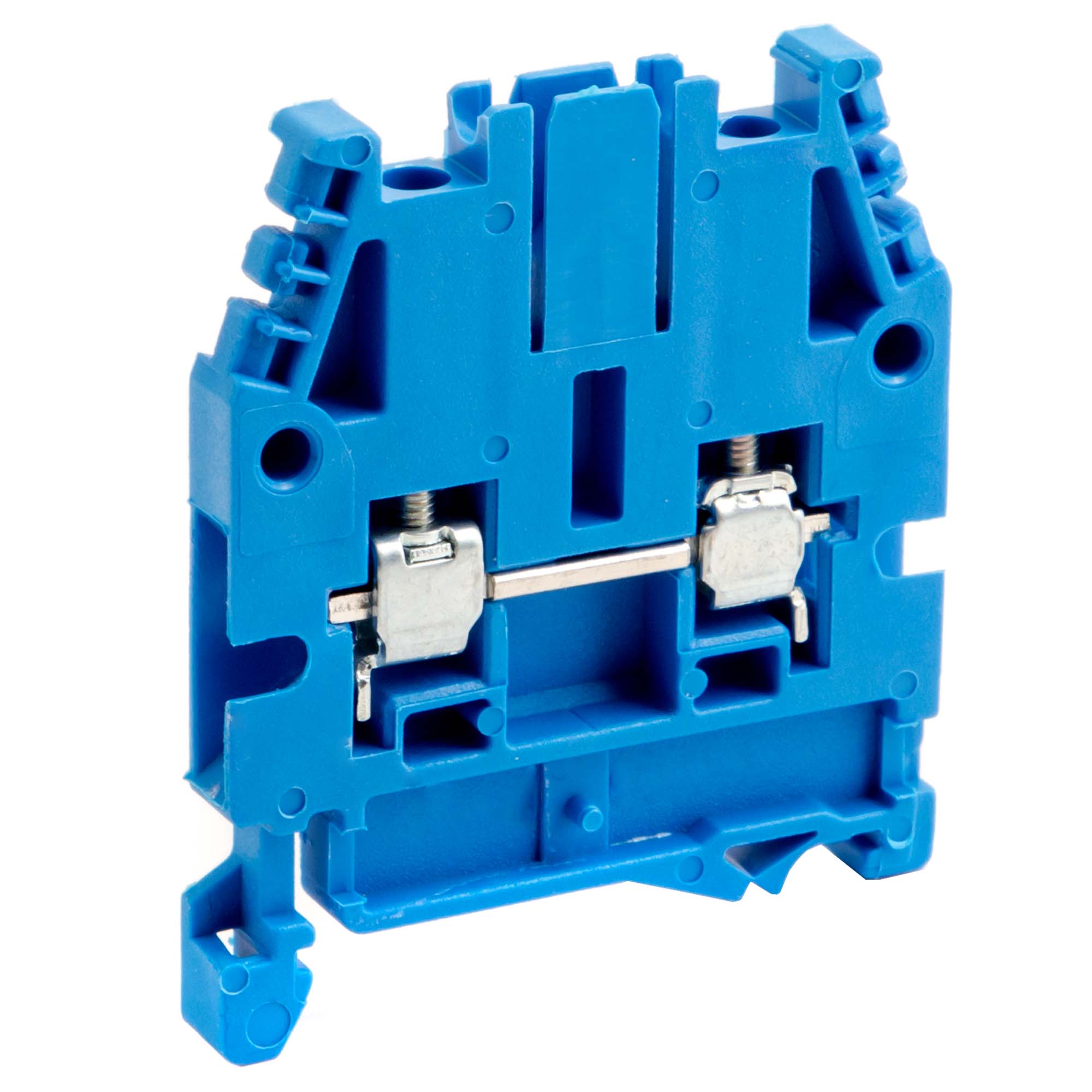

CBC.4(EX)I BLU POLYAMIDE TERMINAL BLOCK
Code: ZCBI04
CBC.4(EX)I BLU POLYAMIDE TERMINAL BLOCK
Code: ZCBI04
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Blue |
| Rated voltage, V | 1000 |
| Number of poles | 1 |
| Operating temperature, °C | -40...80 |
| Number of clamp positions per pole | 1 |
| Width/grid dimension, mm | 6 |
| Closing plate required | Yes |
| Connectable conductor cross section solid-core, mm² | 0.2…6 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5…2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2…4 |
| Connectable conductor cross section multi-wired, mm² | 0.2…1.5 |
| Rated current In, A | 41 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Other |
| Connection position | Above |
| Length, mm | 44 |
| Height at lowest possible mounting height, mm | 52 |
| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 4 mm² |
| Width | 6 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
Accessories
Drawings
| Seria | Name | STEP | Eplan | DWG |
|---|---|---|---|---|
|
DIN- rail mounting terminal blo -"Quadro"
|
|
|
||
|
DIN- rail mounting terminal blo -"Quadro"
|
|
|
||
|
DIN- rail mounting terminal blo -"Quadro"
|
|
|
||
|
DIN- rail mounting terminal blo -"Quadro"
|
|
Certificates
| Name | Document |
|---|---|
