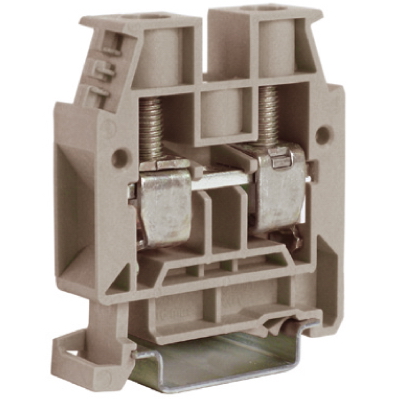

CBC.16/GR FEED-THROUGH T.B.
Code: ZCBC16GR-RET
CBC.16/GR FEED-THROUGH T.B.
Code: ZCBC16GR-RET
Removed from the product range
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Grey |
| Rated voltage, V | 1000 |
| Length, mm | 47 |
| Operating temperature, °C | -40...80 |
| Width/grid dimension, mm | 12 |
| Closing plate required | Yes |
| Number of levels | 1 |
| Connectable conductor cross section solid-core, mm² | 1.5...25 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 1...10 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 1...16 |
| Connectable conductor cross section multi-wired, mm² | 1...6 |
| Rated current In, A | 101 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Height at lowest possible mounting height, mm | 56 |
| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 16 mm² |
| Width | 12 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
