Color gray
Material of case Polyamide
Height, mm 47
Width, mm 40,5
Thickness, mm 5,5
Temperature of mounting, °C -40...+80
Summarized profile area (max), sq.mm 1,3
Temperature of operation, °C -40 - +80
Voltage of disruption, V 8000
Mounting method Other
Colour Beige
Nominal rated voltage, V 600
Length, mm 40.5
Operation temperature, °C -40…80
Width/grid dimension, mm 5.5
Height at lowest possible mounting height, mm 47
Closing plate required No
Type of thermal element Other
Number of levels 1
Number of clamp positions per level 1
Internally connected stages No
Connectable conductor cross section solid-core, mm² 0.8...1.3
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.8...1.3
Connectable conductor cross section multi-wired, mm² 0.8...1.3
Rated current In, A 15
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Thermoplastic
Connection position Sideways
Drawings
Seria Name Eplan STEP

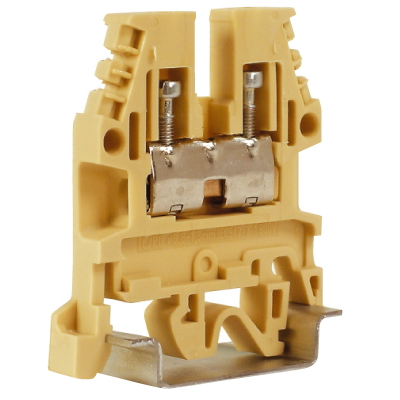

Quadro - DIN- rail mounting terminal blocks
