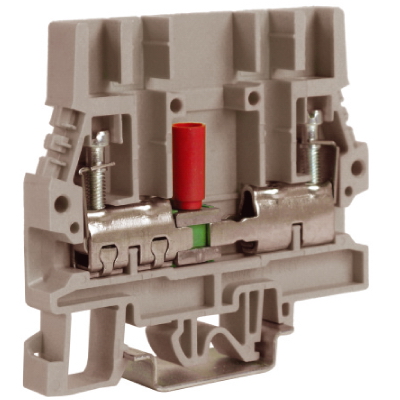

Mounting method DIN rail (top hat rail)/G-rail
Colour Grey
Nominal rated voltage, V 800
Length, mm 69
Operation temperature, °C -40...80
Width/grid dimension, mm 8
Height at lowest possible mounting height, mm 77
Closing plate required Yes
Type of slitting Sliding
Type of cross disconnection Sliding
With integrated test socket No
Number of levels 1
Number of clamp positions per level 1
Connectable conductor cross section solid-core, mm² 0.5…10
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.5…4
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.5…6
Connectable conductor cross section multi-wired, mm² 0.2…2.5
Rated current In, A 41
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Thermoplastic
Connection position Sideways
