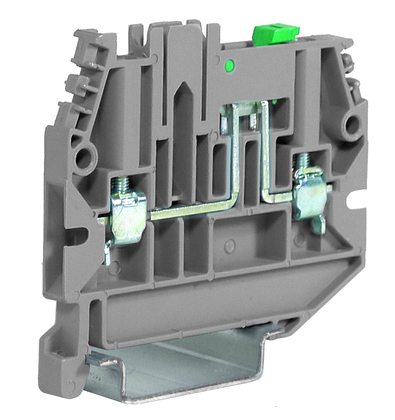

CBS.2 DISCONNECT TERMINAL BLOCK
Code: ZCBS02
CBS.2 DISCONNECT TERMINAL BLOCK
Code: ZCBS02
Mounting method | DIN rail (top hat rail) 35 mm |
Colour | Beige |
Rated voltage, V | 630 |
Length, mm | 57 |
Operating temperature, °C | - 40…80 |
Width/grid dimension, mm | 5 |
Height at lowest possible mounting height, mm | 52 |
Closing plate required | Yes |
Type of slitting | Swivelling |
Type of cross disconnection | Swivelling |
With integrated test socket | Yes |
Number of levels | 1 |
Number of clamp positions per level | 2 |
Connectable conductor cross section solid-core, mm² | 0.2...4 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5…1.5 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2…2.5 |
Connectable conductor cross section multi-wired, mm² | 0.2…1.5 |
Rated current In, A | 22 |
Inflammability class of insulation material according to with UL94 | V0 |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Material insulation body | Thermoplastic |
Connection position | Sideways |
Product type | Terminal block |
Clamp type | Screw clamp |
Cross-section | 2,5 mm² |
Width | 5 mm |
Q'ty of poles | 2 |
Number of levels | 1 |
