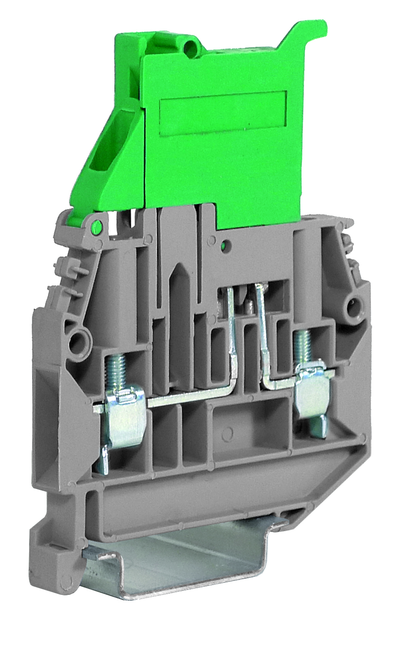

CBF.4/GR 4MM FUSEHOLDER T.B. 5X20

Code: ZCBF04GR
CBF.4/GR 4MM FUSEHOLDER T.B. 5X20
CBF.4/GR 4MM FUSEHOLDER T.B. 5X20
Model Fuse base
Rated permanent current Iu, A 6,3
Number of poles 1
Distance between rail centre, 50 mm No
Distance between rail centre, 40 mm No
Distance between rail centre, 60 mm No
Construction size fuse insert Other
Distance between rail centre, 100 mm No
Distance between rail centre, 185 mm No
Connection type main current circuit Screw connection
Double interrupting No
Max. rated operation voltage Ue AC, V 630
Drawings
Seria Name Eplan STEP
Quadro - DIN- rail mounting terminal blocks
The System "Quadro"
RAR
27.23 MB
Quadro - DIN- rail mounting terminal blocks
The system "Quadro" - teminal
XLS
300.00 kB
Certificates
Name Document
Quadro_Terminal blocks - Exemption letter for clamps
PDF
4.63 MB
Quadro_Terminal blocks - Exemption letter for connectors brass
PDF
4.60 MB
Quadro - Exemption letter for terminal blocks
PDF
3.10 MB
Certificate of conformity to GOST R for terminal blocks Cabur
PDF
4.74 MB
Quadro_Terminal blocks - Declaration of conformity to GOST R for tools Cabur
PDF
365.92 kB
Certificate of conformity for terminal clamps
PDF
559.21 kB
Certificate of conformity for terminal clamps
PDF
5.25 MB
Certificate of conformity to TR TC 004/2011 for terminal blocks Cabur (series CBS, CBF, DBC)
PDF
1.12 MB
Certificate of conformity for terminal blocks of Cabur
PDF
4.00 MB
