| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Green/yellow |
| Length, mm | 50 |
| Operating temperature, °C | -40...80 |
| Closing plate required | Yes |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Connectable conductor cross section solid-core, mm² | 0.2...6 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.2...6 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...6 |
| Connectable conductor cross section multi-wired, mm² | 0.2...6 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| PEN function possible | No |
| Product type | Accessory |

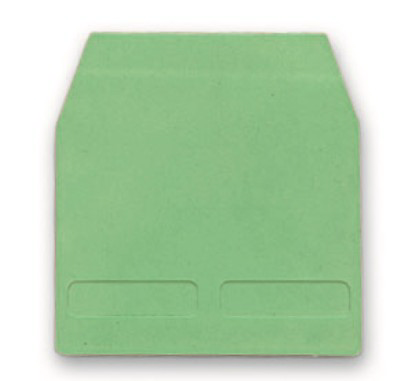

| Type of accessories | End cover |
| Width | 1 mm |
| Number of levels | 1 |
| PE | PE |
