| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Green/yellow |
| Length, mm | 56 |
| Operating temperature, °C | -40...80 |
| Closing plate required | Yes |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Connectable conductor cross section solid-core, mm² | 2.5...50 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 2...2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 2...35 |
| Connectable conductor cross section multi-wired, mm² | 0.5 ...16 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Width/grid dimension, mm | 16 |
| Height at lowest possible mounting height, mm | 63 |
| PEN function possible | No |

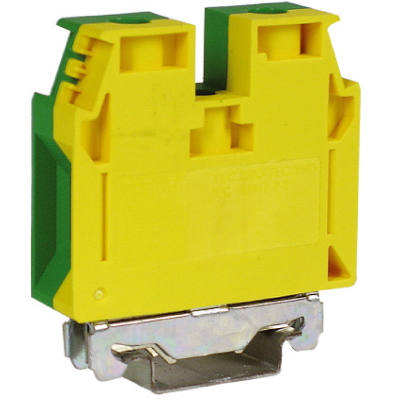

| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 35 mm² |
| Width | 16 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
| PE | PE |
