Mounting method DIN rail (top hat rail) 35 mm
Colour Green-yellow
Length, mm 106.2
Operation temperature, °C -60…130
Width/grid dimension, mm 5.2
Height at lowest possible mounting height, mm 68.4
Closing plate required Yes
Number of levels 3
Number of clamp positions per level 2
Connectable conductor cross section solid-core, mm2 4
Connectable conductor cross section fine-strand with cable end sleeve, mm2 2.5
Connectable conductor cross section fine-strand without cable end sleeve, mm2 2.5
Connectable conductor cross section multi-wired, mm2 2.5
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Material insulation body Thermoplastic
Connection position Above
Drawings
Seria Name STEP

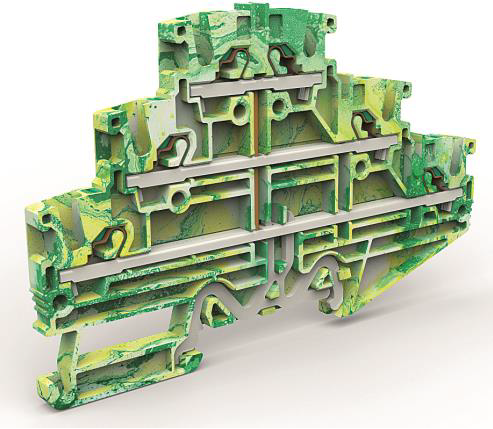

Quadro - DIN- rail mounting terminal blocks
