Material PVC
Height, mm 100
Length, mm 3000
Thickness of metal sheet, mm 0,8
Colour Light grey
Model Other
Surface protection Hot-dip galvanized
Material quality Other
Length, mm 3000
Material Steel
Type of fastening Screwable
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable duct No
Partition height, mm 100
Stainless steel, pickled No
Suitable for circuit integrity No
Mounting perforation Yes

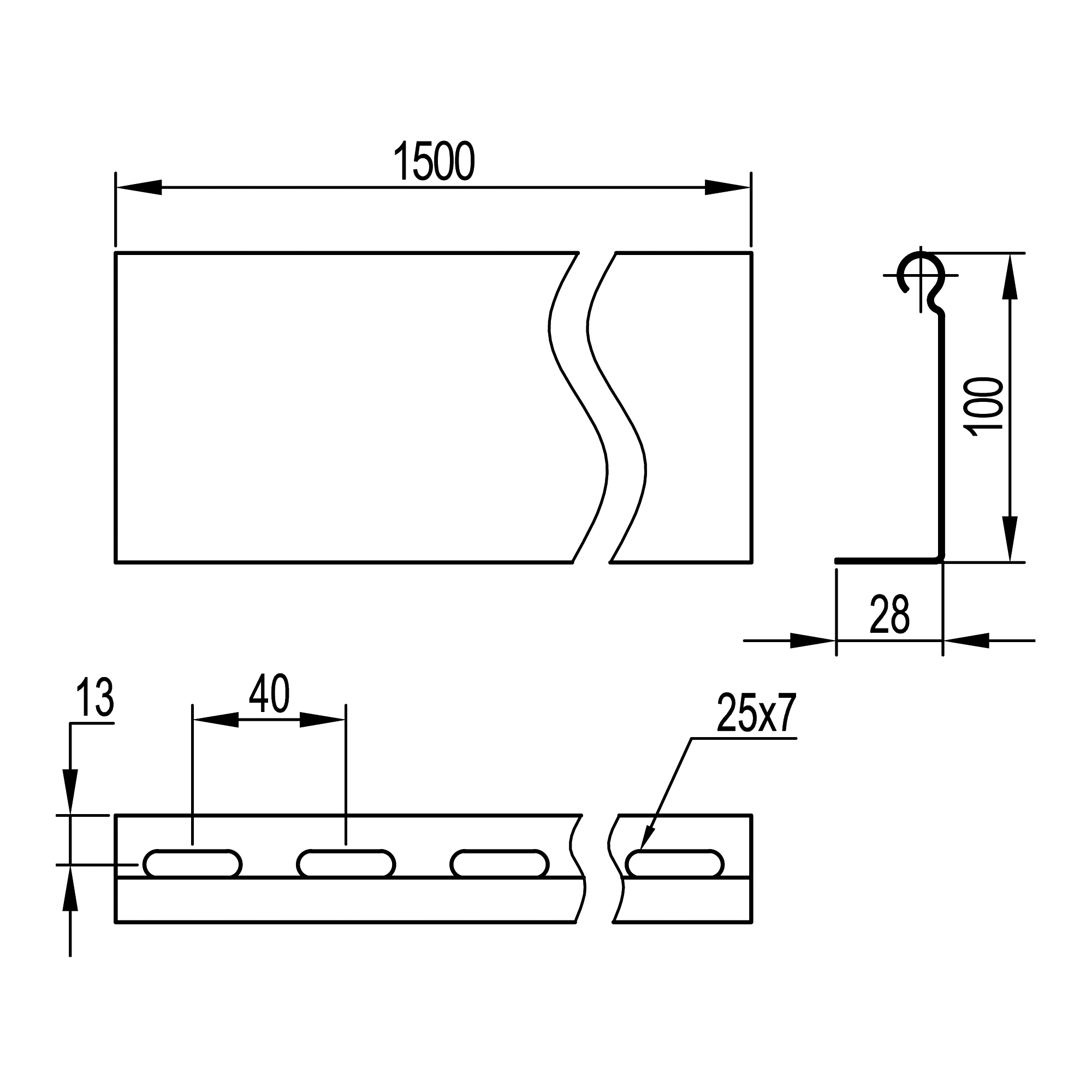

Drawings
Seria Name STEP SAT Intergraph Autodesk Revit DWG (dynamic blocks) AVEVA
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
