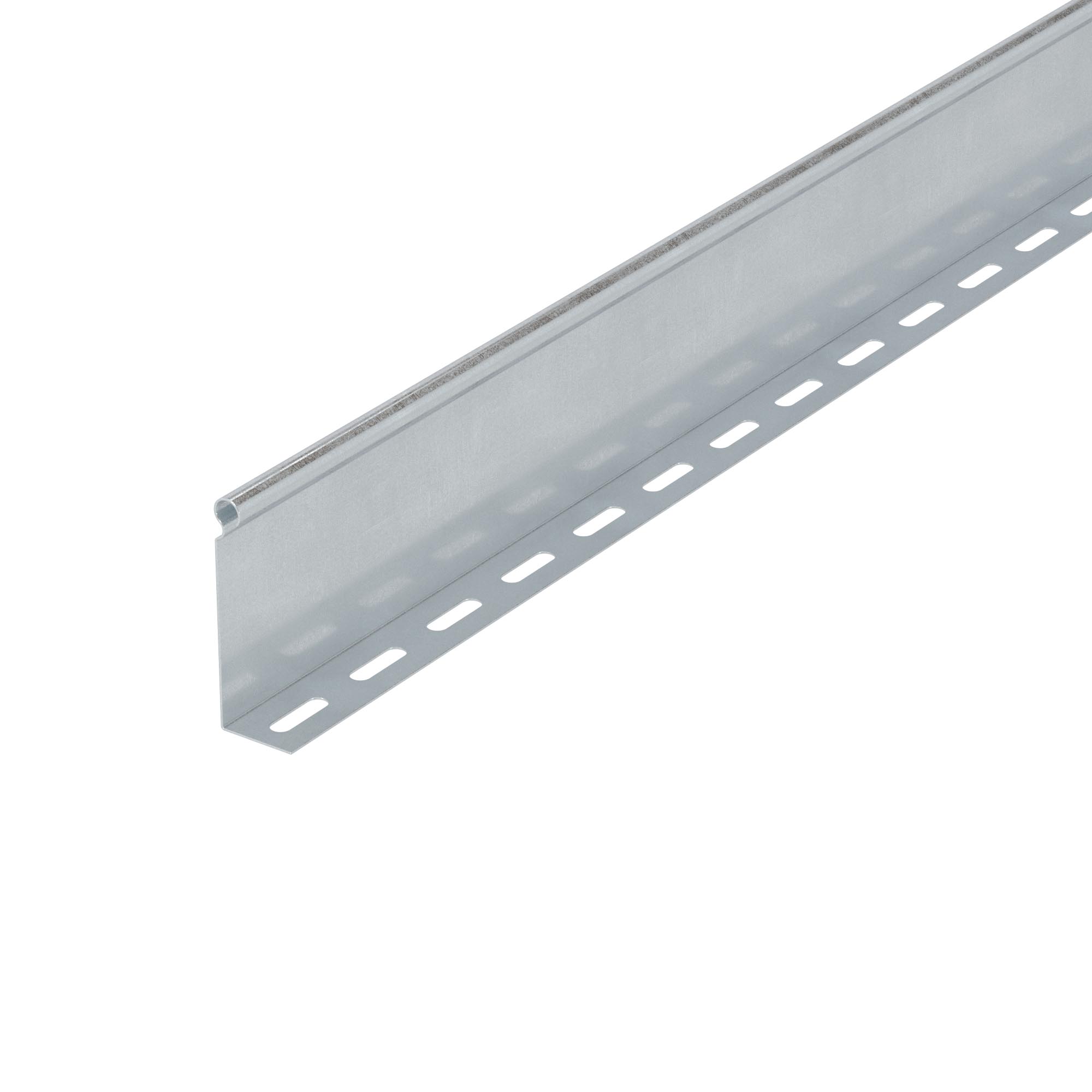

Divider h. 50 L 3000, HDZ
Code: 36480HDZ
Divider h. 50 L 3000, HDZ
Code: 36480HDZ
Surface protection | Hot-dip galvanized |
Length, mm | 3000 |
Material | Steel |
Type of fastening | Screwable |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Partition height, mm | 50 |
Stainless steel, pickled | Yes |
Suitable for circuit integrity | Yes |
Mounting perforation | Yes |
Material quality | Steel |
Product type | Mounting accessories |
Type of accessories | Divider |
Length | 3000 mm |
Height | 50 mm |

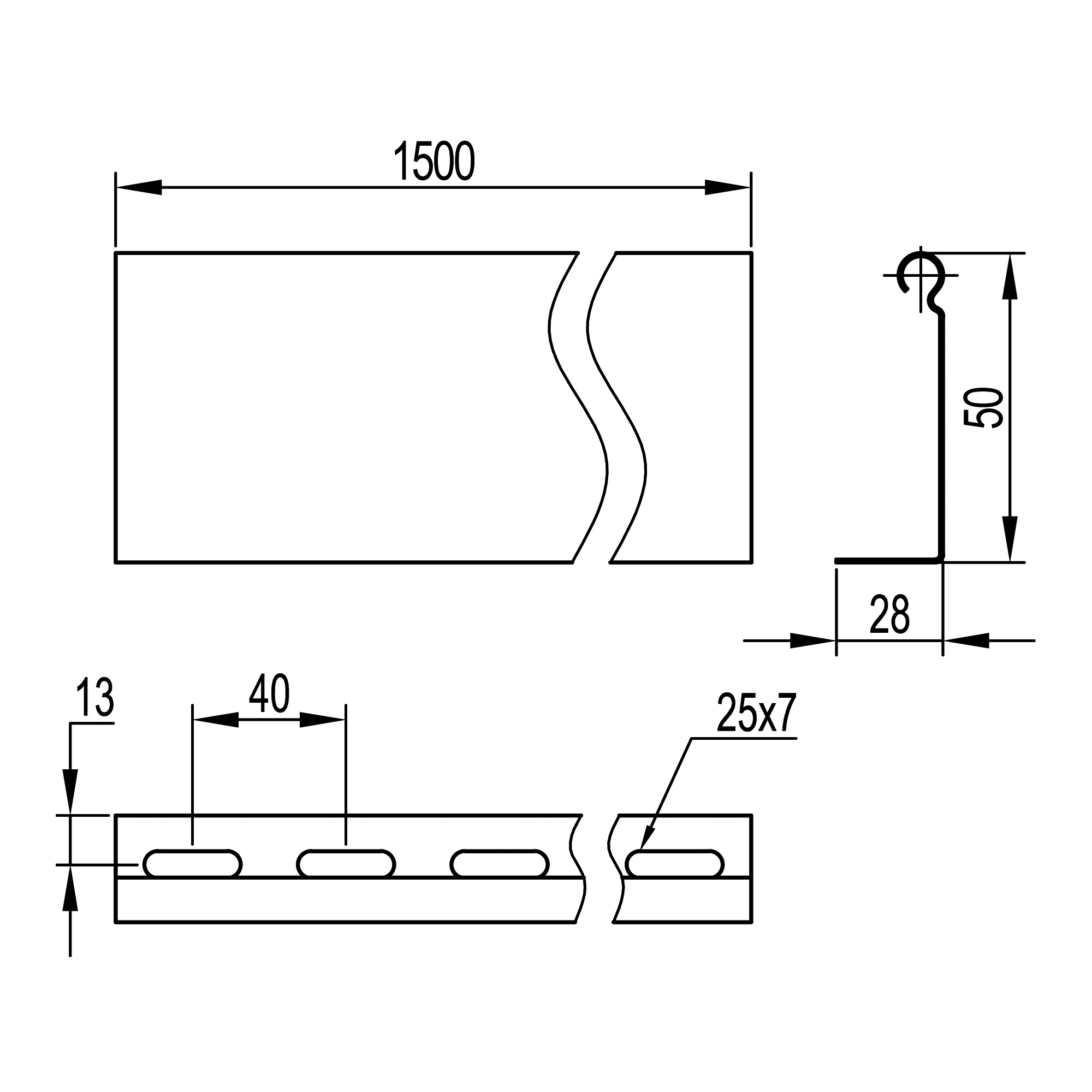

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
