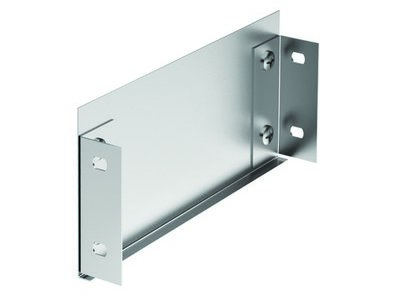

Assembled End Cap 500x100 HDZ

Code: 30270HDZ
Assembled End Cap 500x100 HDZ
Assembled End Cap 500x100 HDZ

Assembled End Cap 500x100 HDZ

Code: 30270HDZ
Colour Light grey
Surface protection Hot-dip galvanized
Material quality Other
Material Steel
Cable tray width, mm 500
Cable tray height, mm 100
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type Mounting accessories
Type of accessories Plug
Height 100 mm
Thickness 1.0 mm
Material Hot-dip galvanized
Width 500 mm

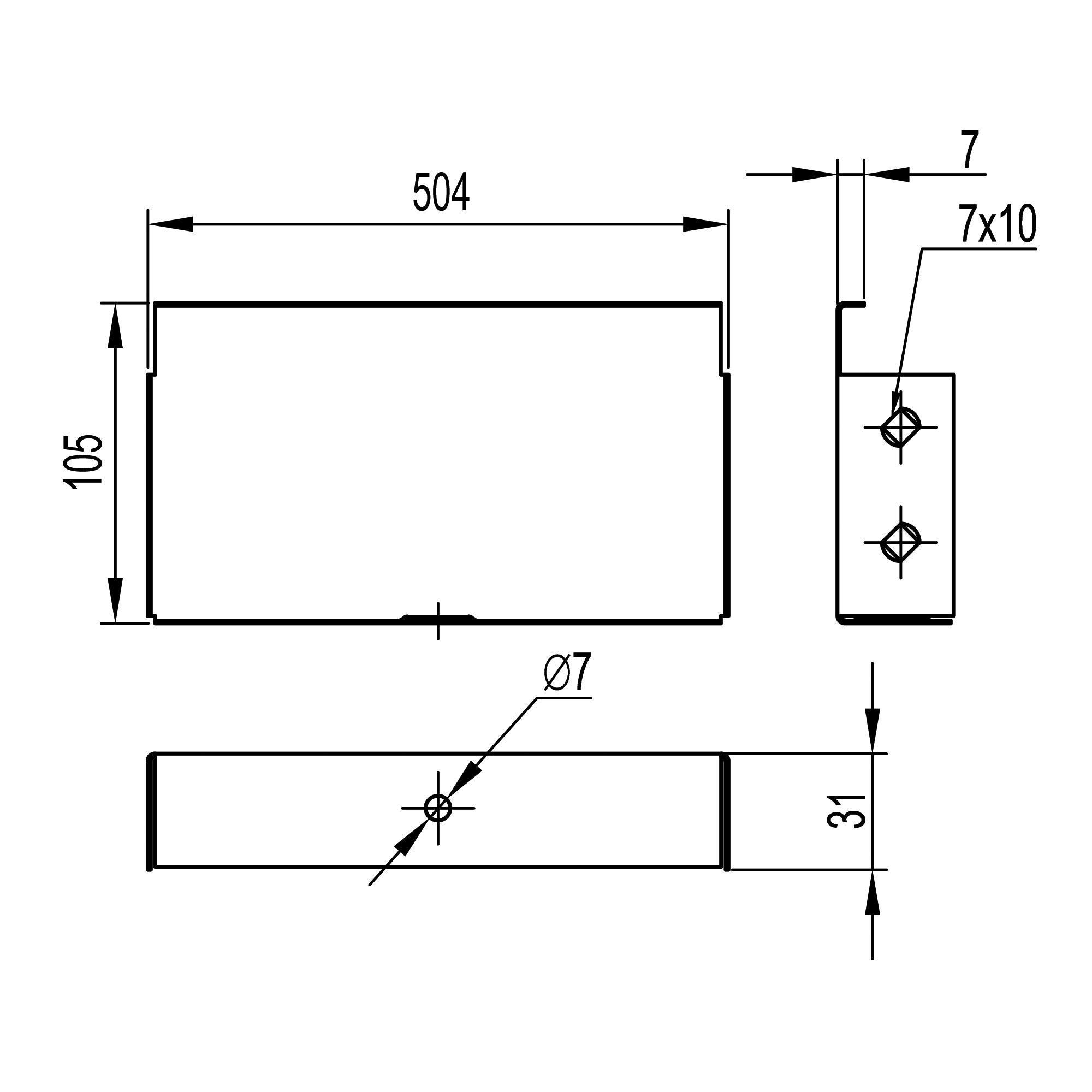

Drawings
