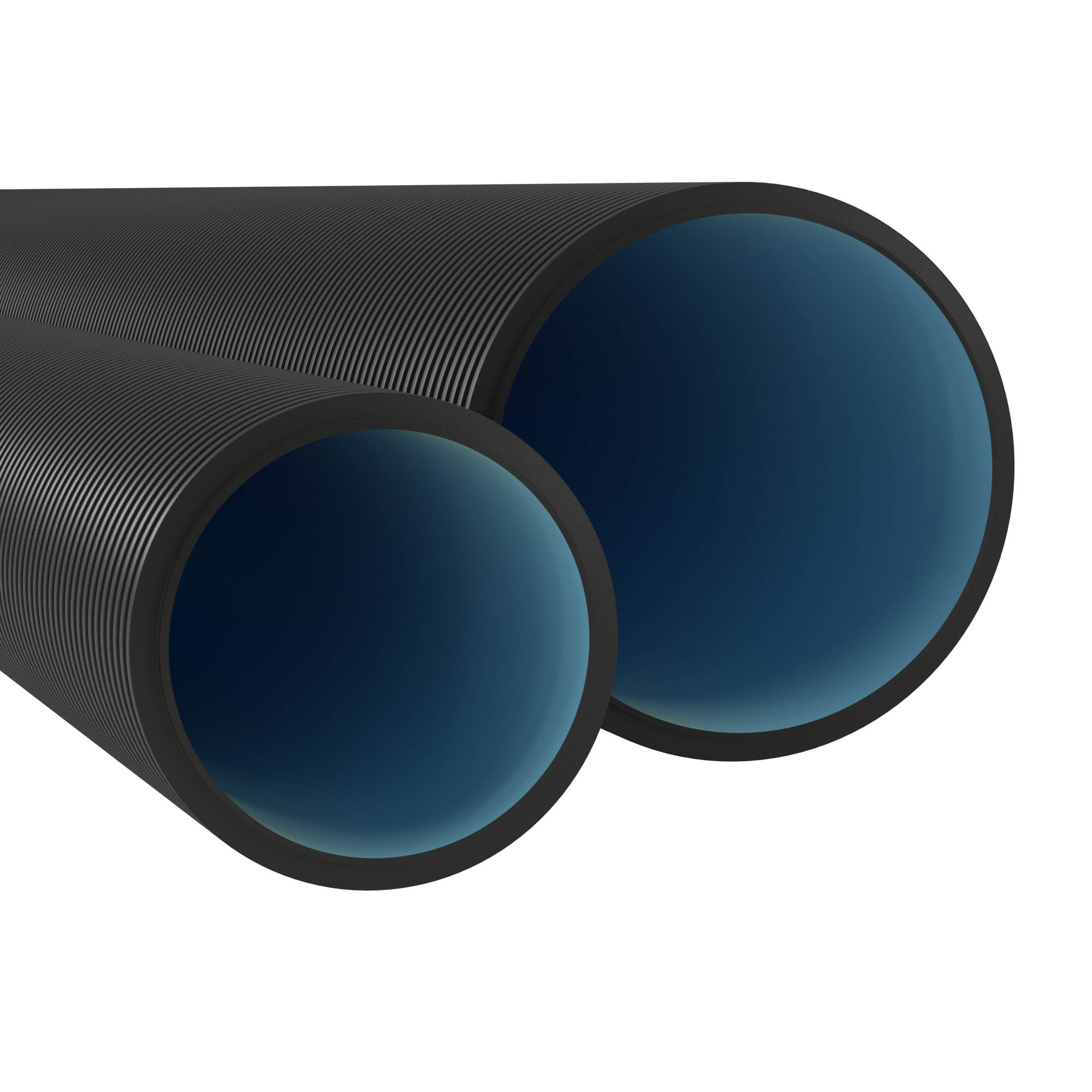

Double-wall tube HDPE outdoor rigid ? 200 mm, SN 6, V0, UF, without pull, 6 m, black color

Code: 170920
Code: 170920
  • To ask a question
UV resistant Yes
Compressive strength, N 900
Operational temperature, °C -55...+90
Material filament Without coil
Plain interior Yes
Flexibility Rigid
Plain exterior No

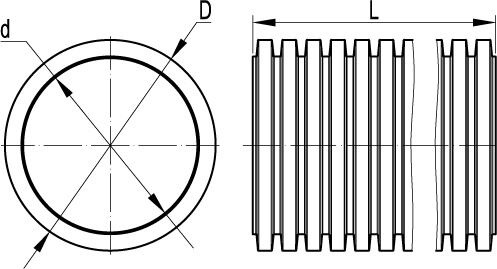

Nominal diameter, mm 200
Degree of protection (IP) IP44
With draw wire No
Colour Black
Inner diameter, mm 172
Material Solid PE (HD-PE)
Color Black
Material PVC
-5°С ... +60°С -25°С ... +90°С
Ingress Protection rating, IP IP44 (IP55)
от -25°С до +60°С from -55°С to +90°С
Cord for wires Yes
ТУ 2248-012-47022248-2009 Technical specifications 2248-047-47022248-2015
3 года 2 years
15 лет 2 years
Length 6 m
Product type Double-walled pipes
Ring stiffness 6 kPa
Compression resistance 900 N
Complete set of broaching No
Packing type Segments
Packing standards 180\6 m
