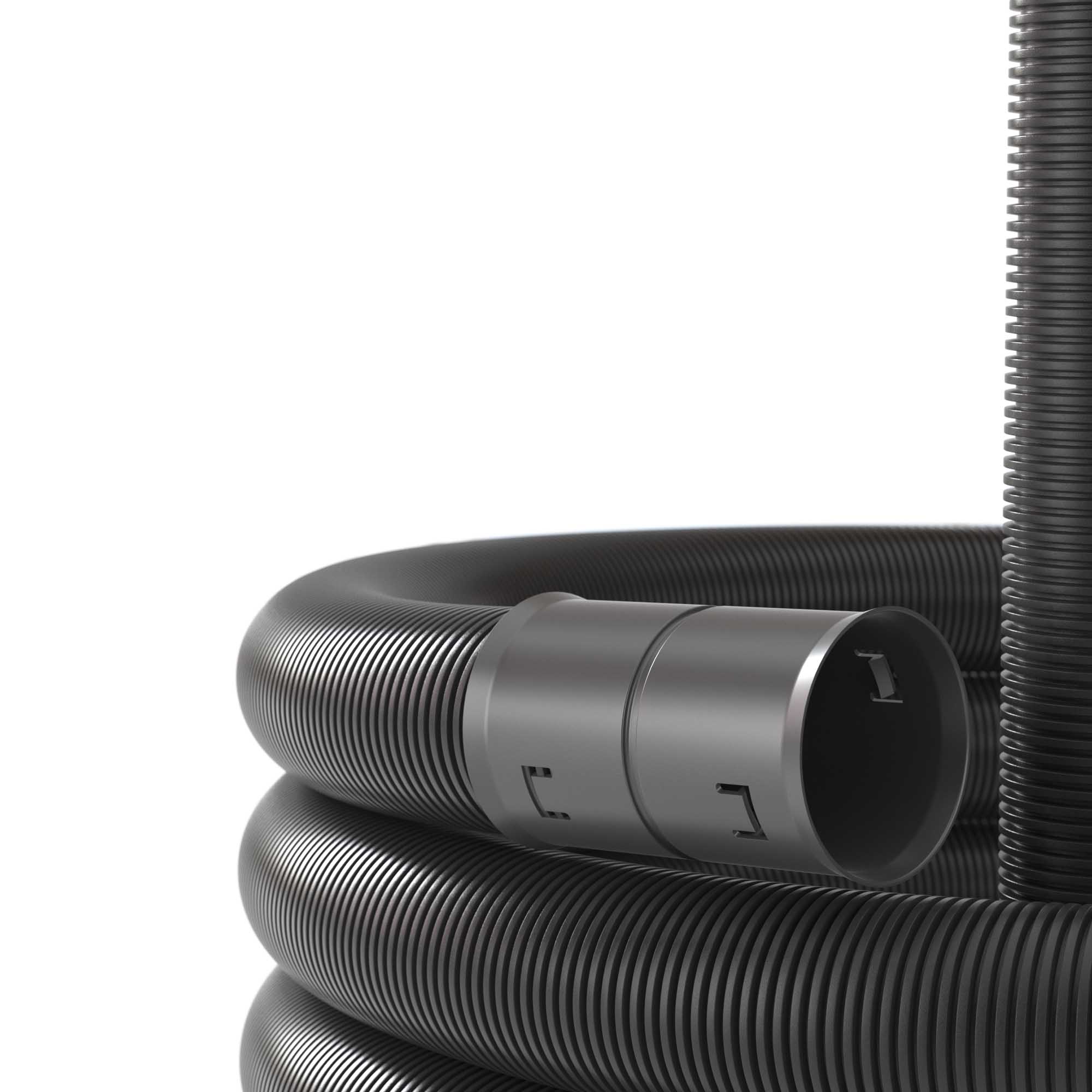

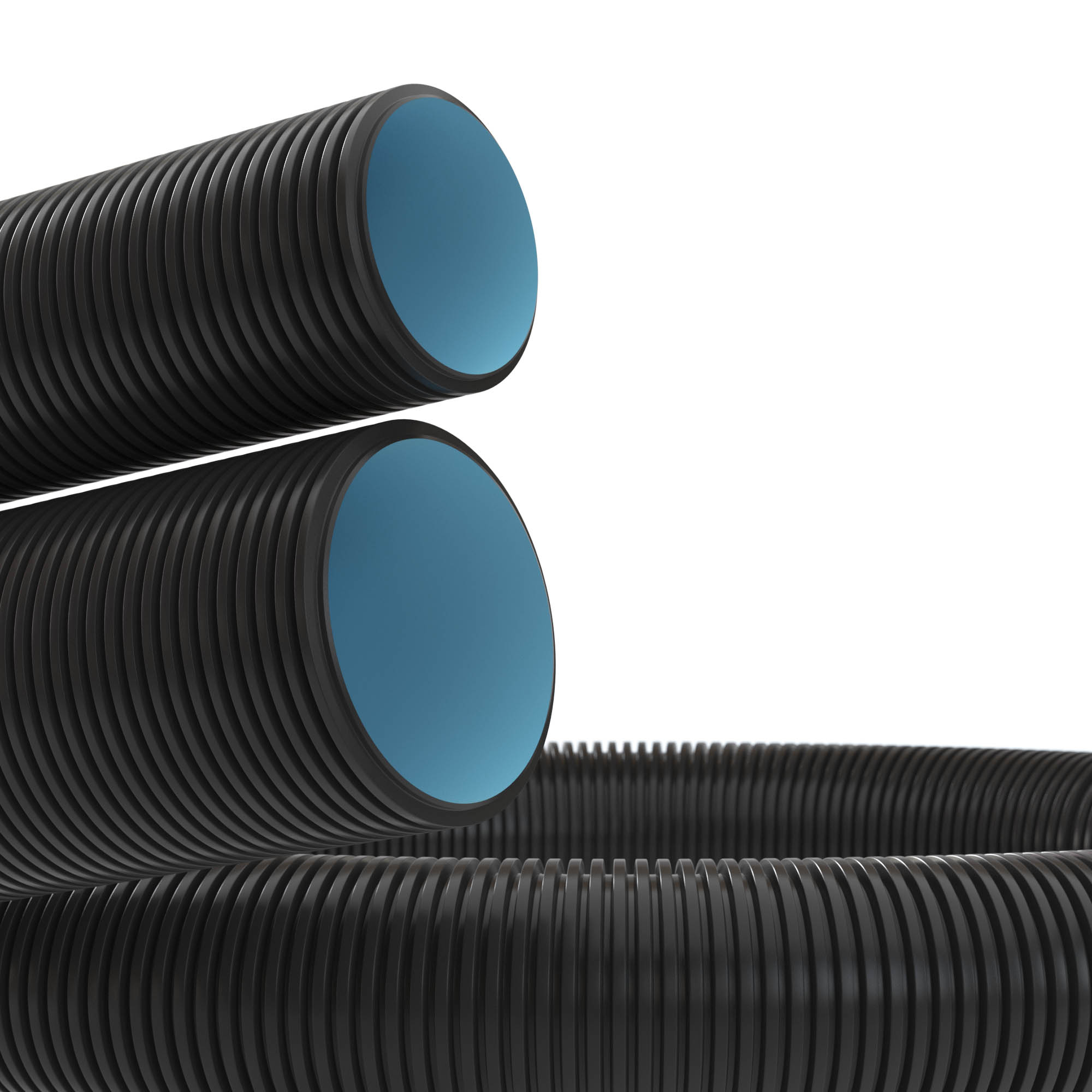

Double-wall tube HDPE outdoor flex. ? 63 mm, SN 13, V0, UF, with pull, 100 m in coil, black color

Code: 151963100
Double-wall tube HDPE outdoor flex. ? 63 mm, SN 13, V0, UF, with pull, 100 m in coil, black color
Double-wall tube HDPE outdoor flex. ? 63 mm, SN 13, V0, UF, with pull, 100 m in coil, black color
Colour Black
Outer diameter, mm 63
Inner diameter, mm 51,5
Material Polyethylene
Operating temperature, °C -55..+90
Surface mounted Yes
Outdoor installation Yes
Underground No
With sleeve Yes
High conducting inner coating Yes
Certificates
Name Document
"Octopus"_ Double-wall tubes - Certificate of conformity to GOST R for double walled electrotechnical pipes for open laying (TU 2248-047-47022248-2015)
PDF
471.39 kB
