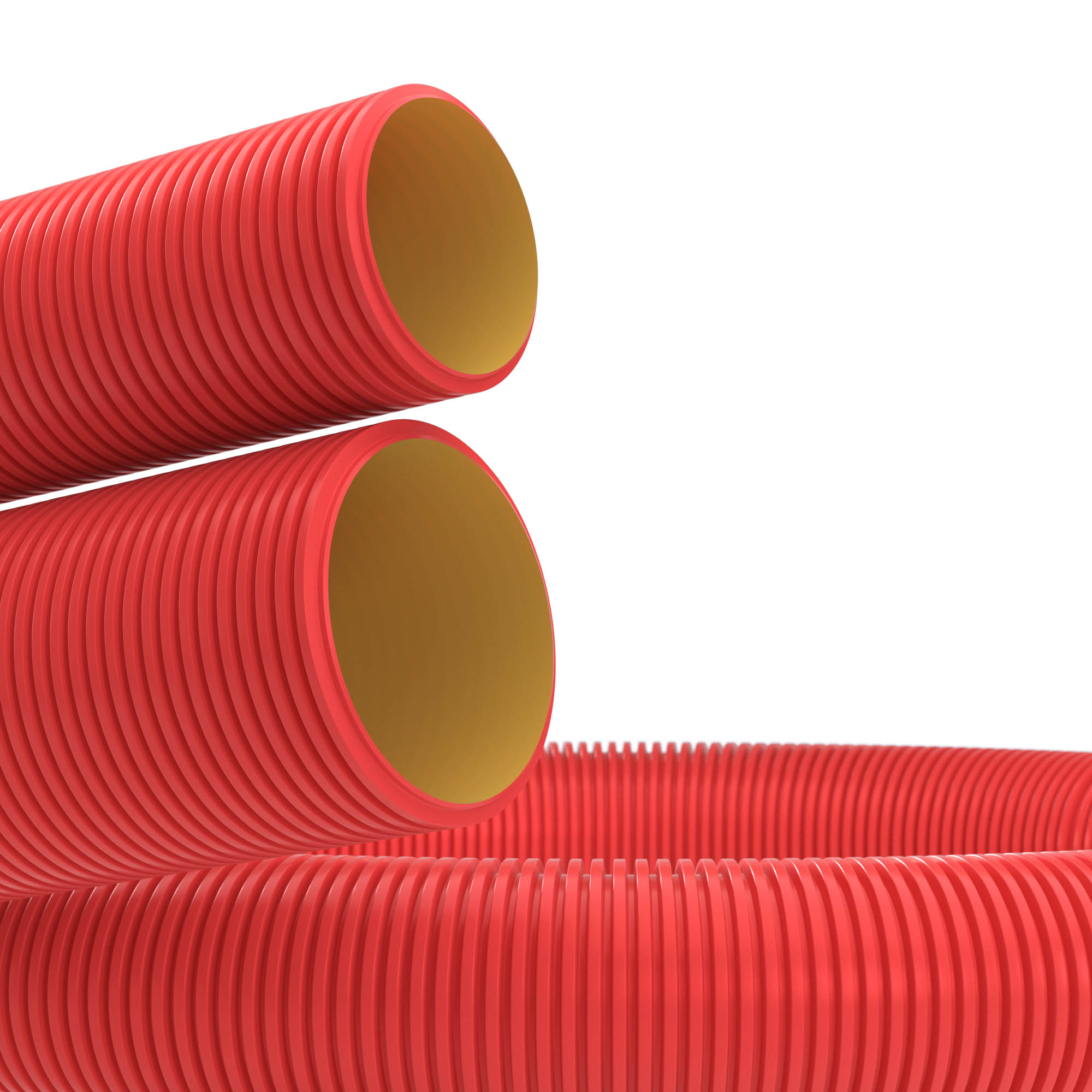

Double-wall tube HDPE flex. for cabling system ? 63 mm, SN 13, 250N, with pull, 100 m in coil, red color

Code: 121963100

Double-wall tube HDPE flex. for cabling system ? 63 mm, SN 13, 250N, with pull, 100 m in coil, red color

Code: 121963100
Colour Red
Model Pliable

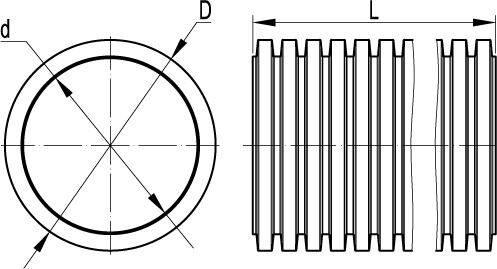

Outer diameter, mm 63
Inner diameter, mm 51.5
Surface protection Untreated
Material quality Polyethylene (PE)
Shape Outer side ribbed, inner side plain
Material Plastic
Transparent Yes
Surface polished No
Length 100000 mm
8 диаметров мм 504 mm
Color Red
Material PVC
-5°С ... +60°С -25°С ... +90°С
Ingress Protection rating, IP IP44 (IP55)
от -25°С до +60°С from -55°С to +90°С
Cord for wires Yes
ТУ 2248-012-47022248-2009 Technical specifications 2248-015-47022248-2006
3 года 2 years
15 лет 50 years
Product type Double-walled pipes
Ring stiffness 13 kPa
Compression resistance 500 N
Complete set of broaching Yes
Packing type Coil
Packing standards 100 m
