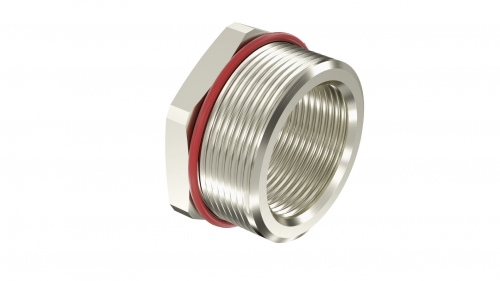

Explosion-proof Ex d e reduction male-female. Type A. ""Female"" M32x1,5 - ""Male"" M25x1,5. Nickel-plated brass. IP66/67/68"

Code: EXDR-M32M25SB

Explosion-proof Ex d e reduction male-female. Type A. ""Female"" M32x1,5 - ""Male"" M25x1,5. Nickel-plated brass. IP66/67/68"

Code: EXDR-M32M25SB
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Surface protection Nickel-plated
Material quality Brass
Thread type Metric
For Ex-Zone dust 21, 22
Shock resistant Yes
Material Nickel plated brass
Product type To change to different types of thread
Marking Ex e IIC Gb U/ Ex tb IIIC Db U
External thread М32х1,5
Internal thread М25х1,5
Temperature range during operation, °С From -65 to +130
